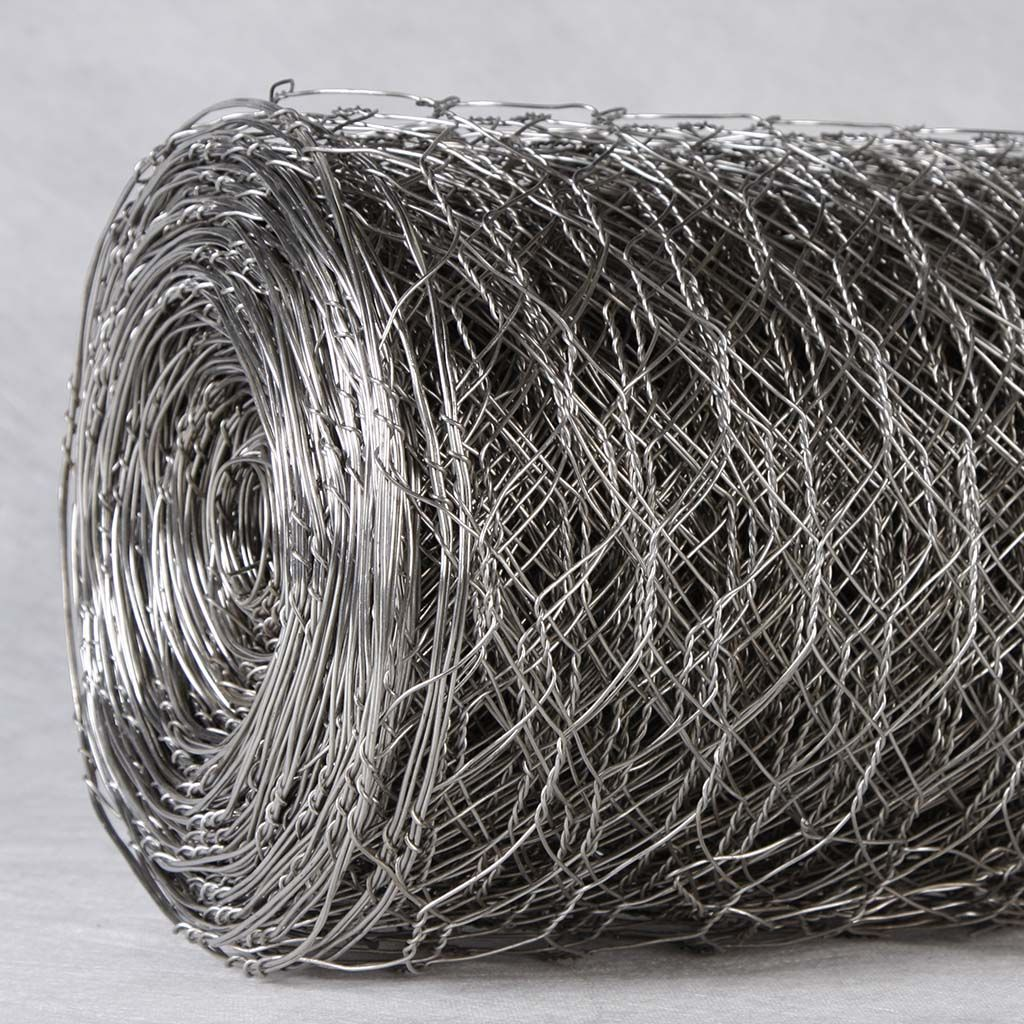

stainless steel hexagonal wire mesh

Stainless steel hexagonal wire mesh is a type of stainless steel wire mesh. It is made from 304, 316, and other grades of stainless steel wire. Its features include excellent corrosion resistance, long lifespan, and an attractive appearance, albeit at a relatively higher price point. Therefore, stainless steel hexagonal wire mesh is frequently used in high-end construction enclosures, electronic component workshops, food processing plants, mechanical manufacturing plants, and other upscale locations.

Availability:



lnquire And Get A Quote

● Stainless Steel Hexagonal Wire Mesh

Stainless steel hexagonal wire mesh is a type of stainless steel wire mesh. It is made from 304, 316, and other grades of stainless steel wire. Its features include excellent corrosion resistance, long lifespan, and an attractive appearance, albeit at a relatively higher price point. Therefore, stainless steel hexagonal wire mesh is frequently used in high-end construction enclosures, electronic component workshops, food processing plants, mechanical manufacturing plants, and other upscale locations.

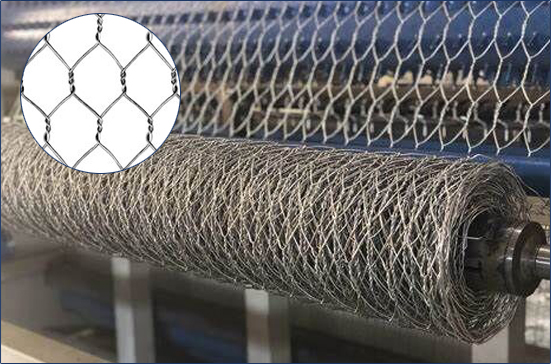

Stainless Steel Hexagonal Wire Mesh

Applications：

1.Fixing, heat preservation and insulation of building wall

2.The binding of pipe in power plants and chemical plants , thermal insulation for the boilers.

3.Anti-freezing, residential and landscaping protection

4.Protect and support seawall, hillside, road and bridge and other water and wood works.

不锈钢六角网

Item：Hexagonal Wire Mesh

Material： Stainless Steel, Galvanized Steel

Woven Type：Continuous twist, Double-direction twist

Surface Treatment：Hot-dip galvanizing, Electro-galvanizing, PVC coating, etc.

The wire diameter of hexagonal wire mesh is various according to the mesh apertures

Hexagonal Wire Mesh

Following is the common specifications of hexagonal wire mesh.

Mesh size	Wire (TJ)	Standard roll height (m)	Roll length (m)
3/8'	TJ27 - TJ24	0.50/0.60/0.80/1.00/1.20/1.50/1.80/2.00	10 m / 20 m / 30 m / 50 m
1/2'	TJ27 - TJ23	0.50/0.60/0.80/1.00/1.20/1.50/1.80/2.00	10 m / 20 m / 30 m / 50 m
5/8'	TJ26 - TJ22	0.50/0.60/0.80/1.00/1.20/1.50/1.80/2.00	10 m / 20 m / 30 m / 50 m
3/4''	TJ25 - TJ20	0.50/0.60/0.80/1.00/1.20/1.50/1.80/2.00	10 m / 20 m / 30 m / 50 m
1"	TJ27 - TJ19	0.50/0.60/0.80/1.00/1.20/1.50/1.80/2.00	10 m / 20 m / 30 m / 50 m
1 1/4"	TJ23 - TJ19	0.50/0.60/0.80/1.00/1.20/1.50/1.80/2.00	10 m / 20 m / 30 m / 50 m
1 1/2"	TJ23 - TJ19	0.50/0.60/0.80/1.00/1.20/1.50/1.80/2.00	10 m / 20 m / 30 m / 50 m
2"	TJ23 - TJ19	0.50/0.60/0.80/1.00/1.20/1.50/1.80/2.00	10 m / 20 m / 30 m / 50 m
2 1/2"	TJ21 - TJ19	0.80/1.00/1.20/1.50/1.80/2.00	10 m / 20 m / 30 m / 50 m
3"	TJ20 - TJ18	1.00/1.20/1.50/1.80/2.00	20 m / 30 m / 50 m
4 "	TJ19 - TJ17	1.00/1.20/1.50/1.80/2.0	20 m / 30 m / 50 m
