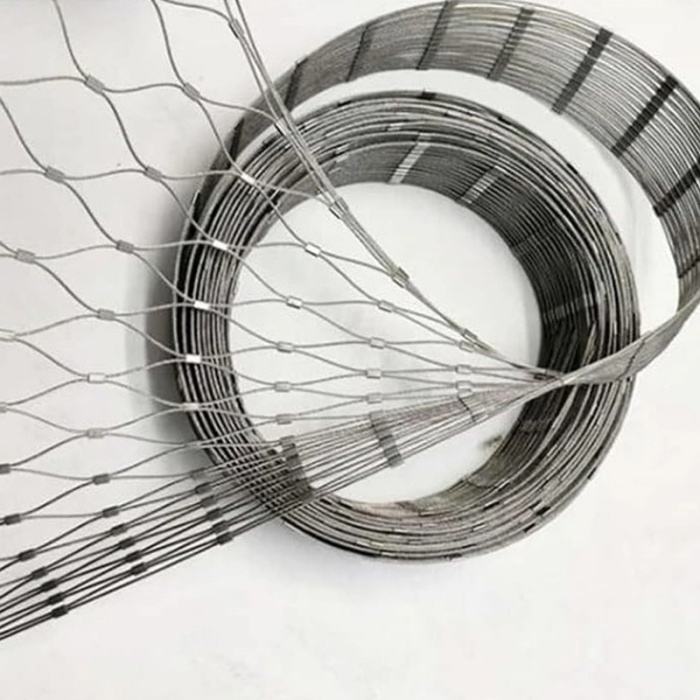

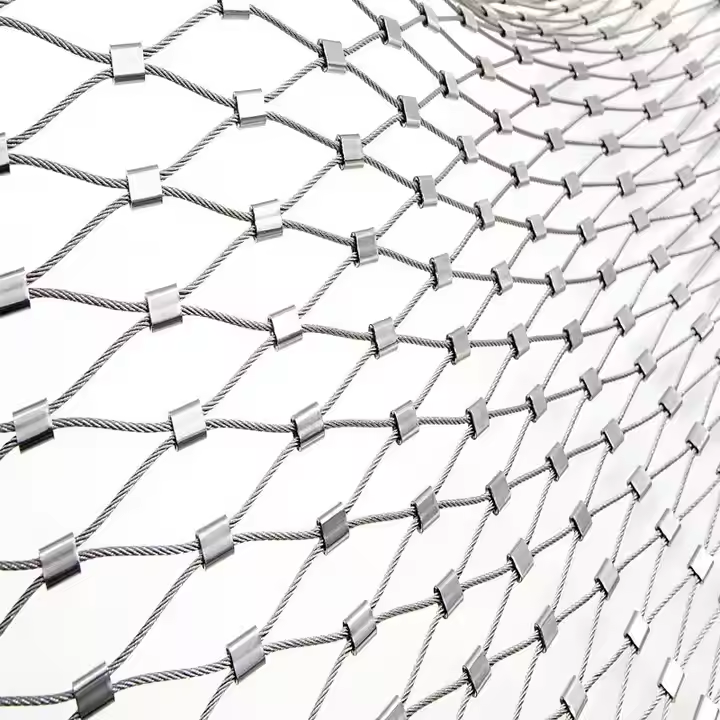

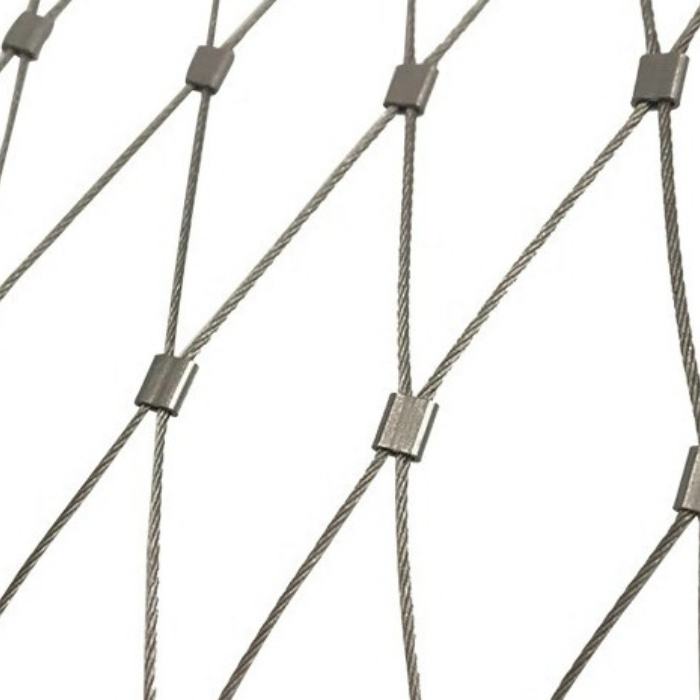

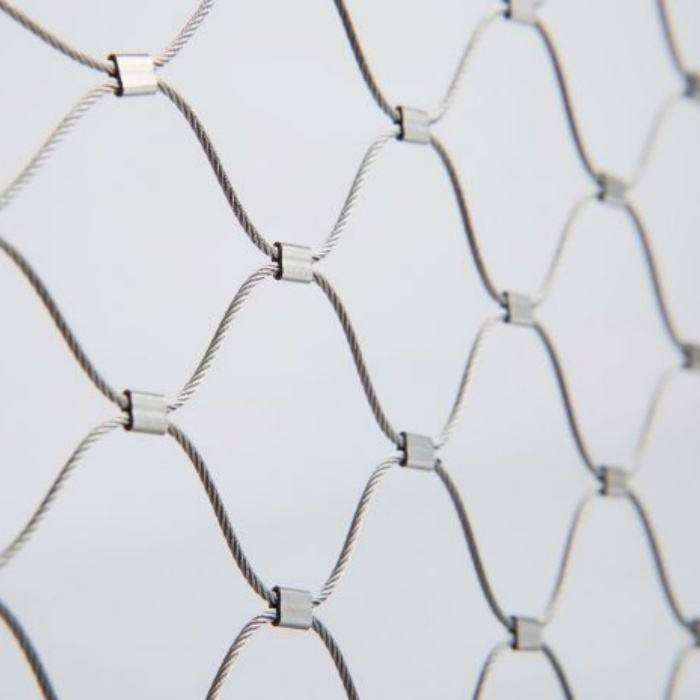

Stainless Steel Rope Mesh is made of 304/316 stainless steel material, which is a kind of metal mesh with special elasticity and extreme flexibility. The mesh shape is rhomboid. The common mesh hole angle is 60° and 90°. The size of the mesh aperture and the thickness of the wire cable can be customized according to different applications.

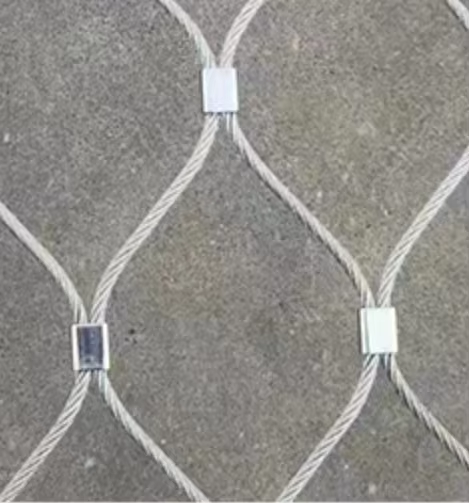

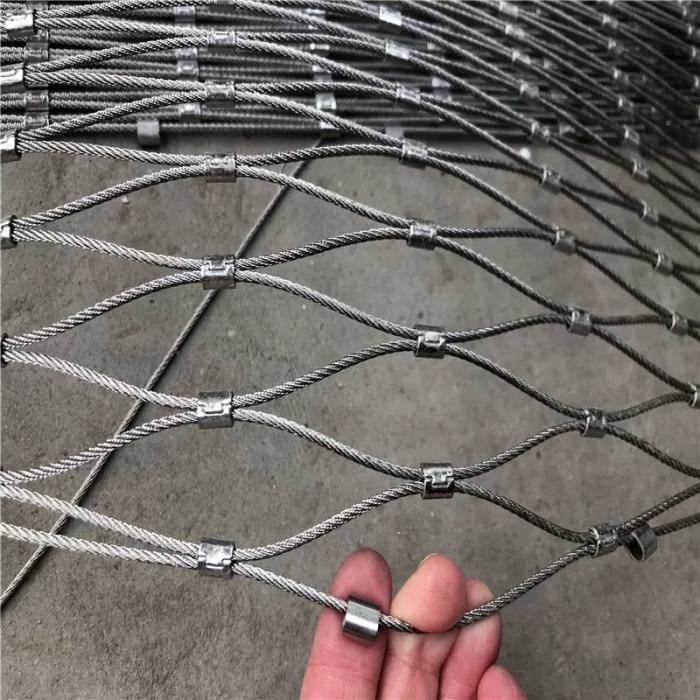

Ferrule Type
Knot Type

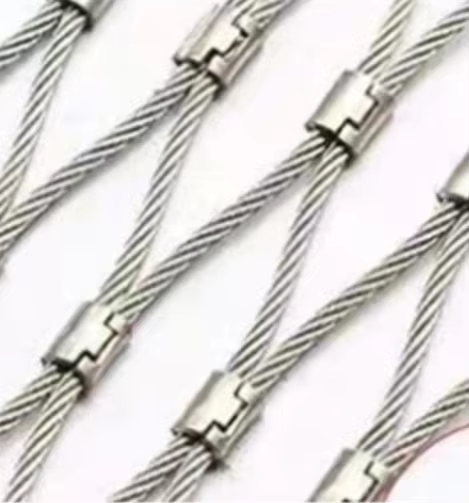

Open Ferrule
Features of Stainless Steel Rope Mesh Net:
④Oversize panels of stainless steel rope mesh can be customized.
Common Specification of Stainless Steel Rope Mesh:
| Cable Wire | |
| Material | SS304, SS304L, SS316, SS316L |

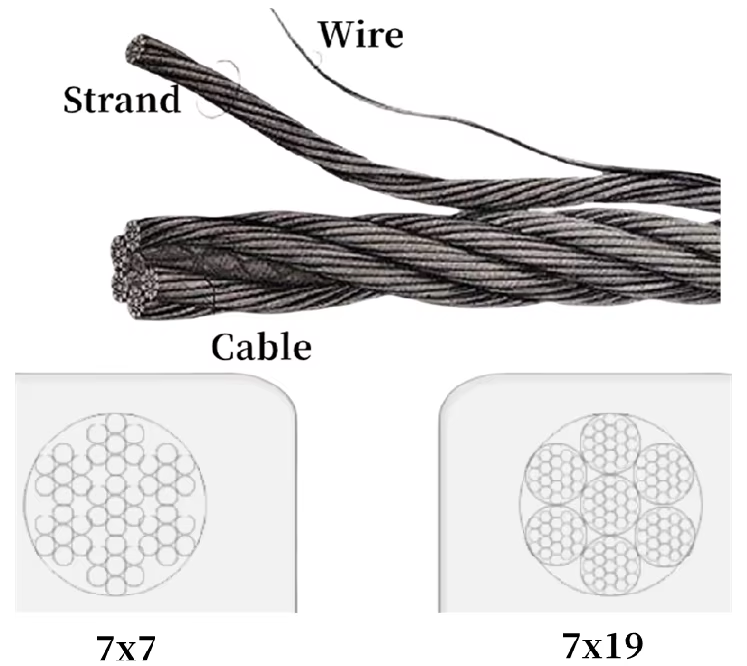

| Structure | 7x7, 7x19 |
| Diameter | 1.0mm - 5.0mm |
| Mesh opening | ||||

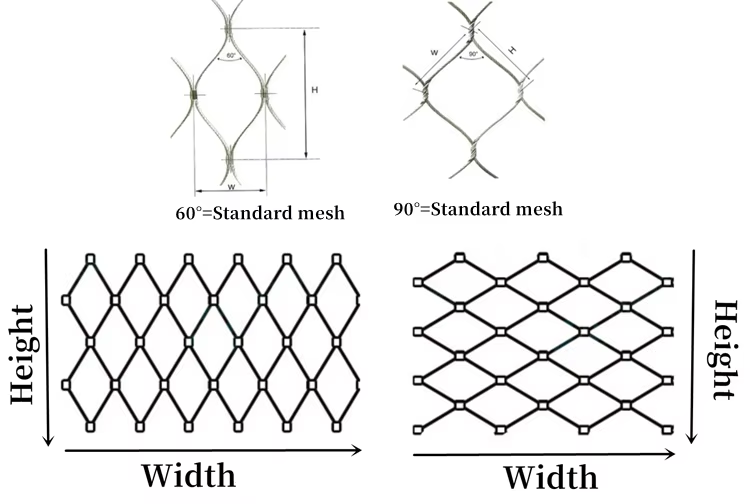

| 60° standard mesh | 20mm×35mm, 25mm×43mm, 30mm×52mm, 40mm×69mm, 50mm×87mm, 60mm×104mm,70mm×102mm, 80mm×139mm, 100mm×173mm, 120mm×208mm, 200mm×346mm, etc. | |||
| 90° standard mesh | 15mm×15mm, 20mm×20mm, 25mm×25mm, 30mm×30mm, 38mm×38mm, 51mm×51mm, 60mm×60mm,76mm×76mm, 90mm×90mm, 102mm×102mm, 127mm×127mm,152mm×152mm, etc. | |||

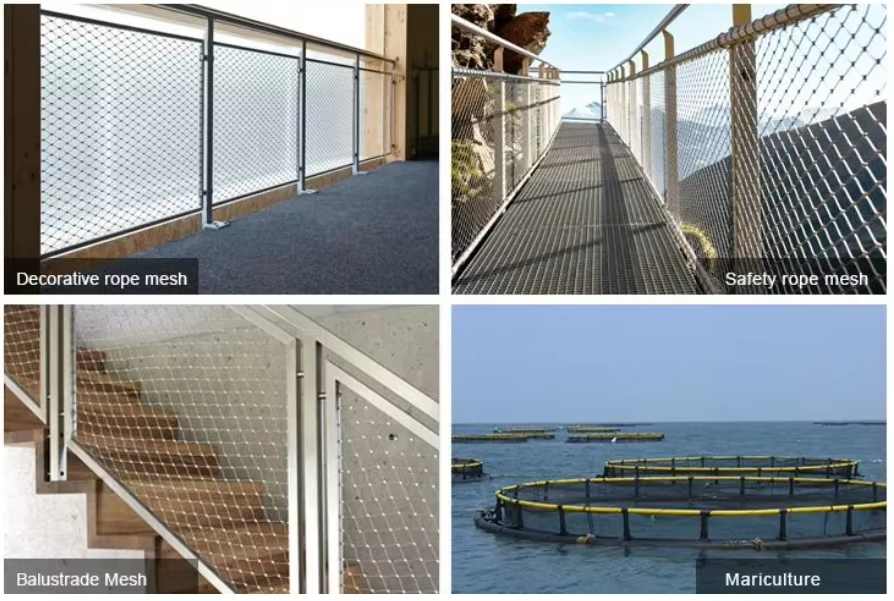

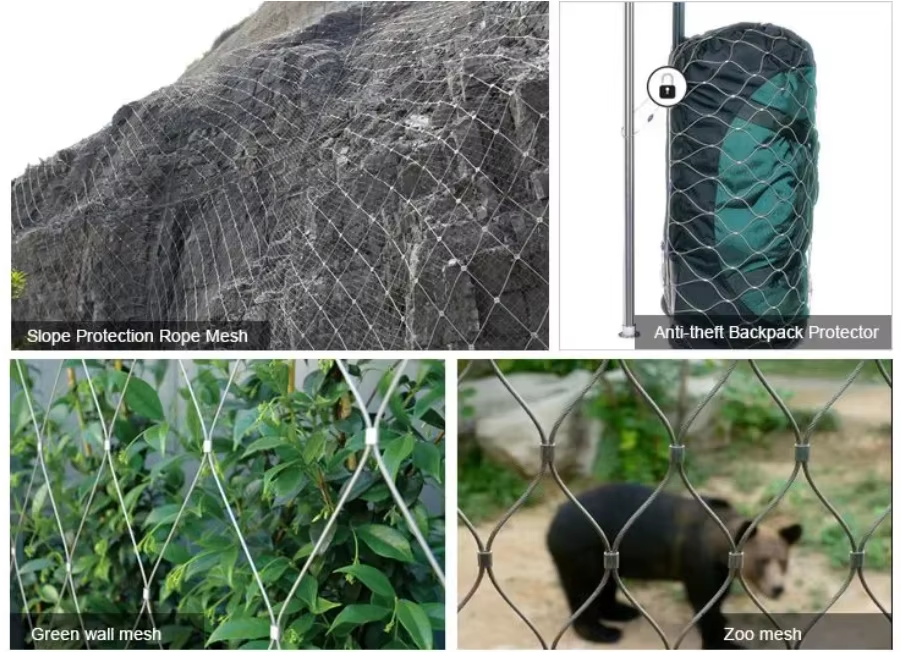

Application scenarios:
The potential applications for stainless steel rope mesh are exceptionally varied both indoors and outdoors. It is used asbalustrade in-fill, plant support, observation platform safety fence,tensile facade, z0o enclosure, divider, horizontal orvertical fall protection.drop-off safety mesh, suspension stair railing mesh, elevated bridge safety mesh etc
