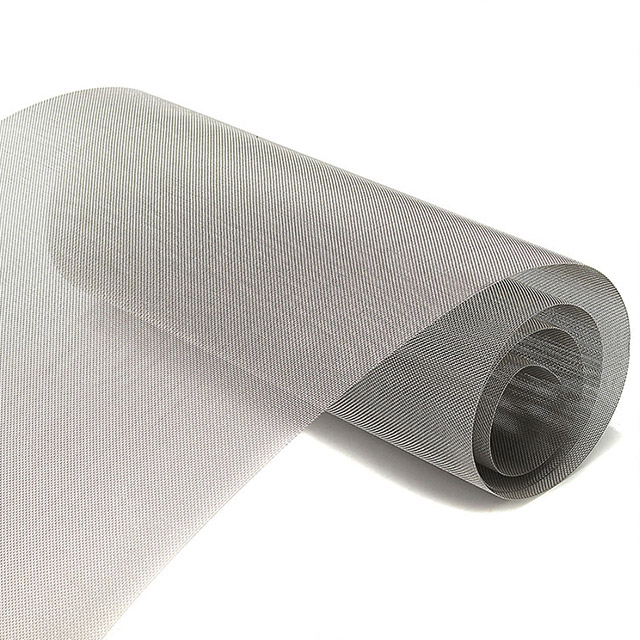

Twill Woven Wire Mesh| Wire Cloth Supplier | Custom Manufacturing | Factory Price

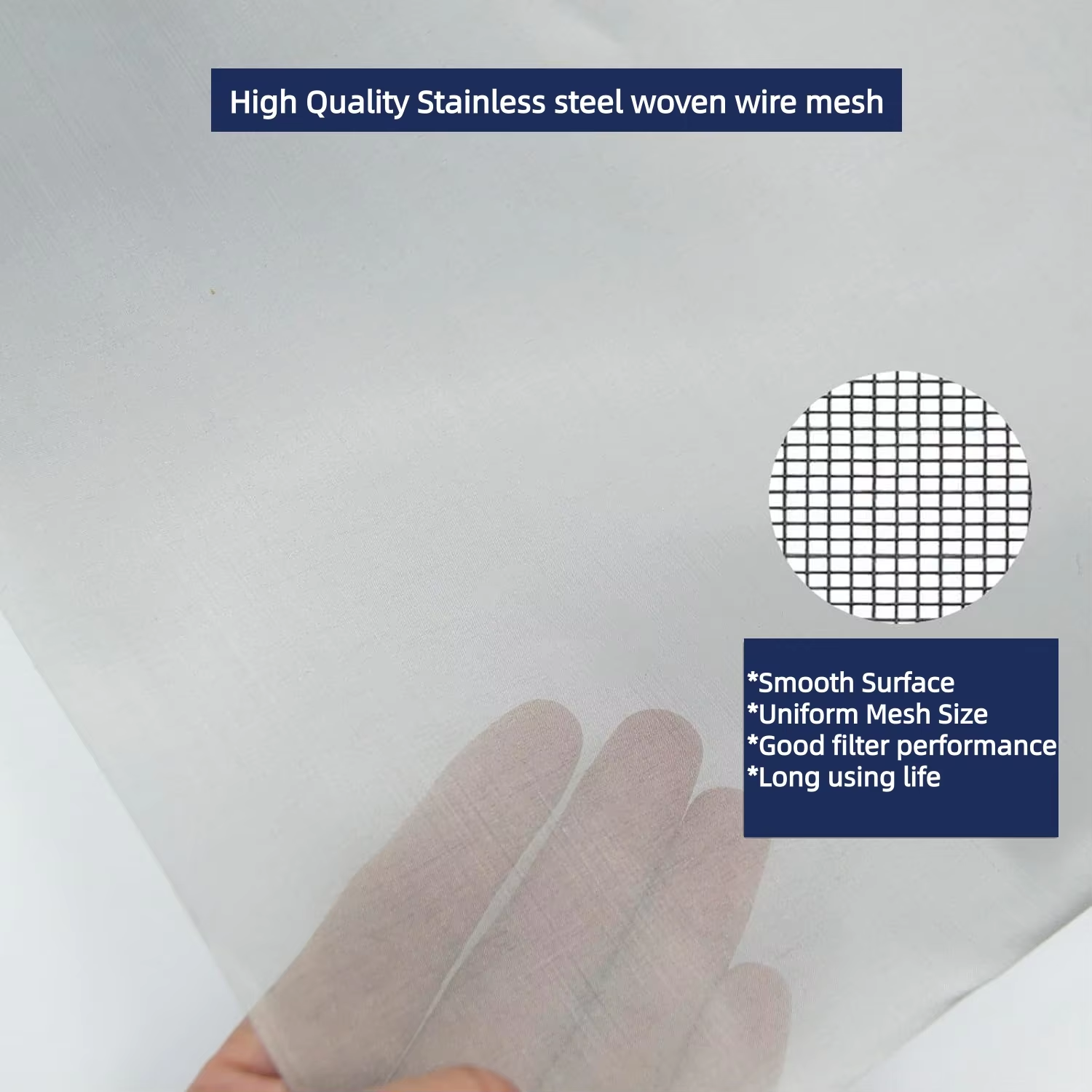

★Twill Woven wire mesh Stainless steel available:304, 304L, 316, 316L, 310s, 904L, 430, etc
Flatness/Levelness：Maximum range per meter ±1.5mm

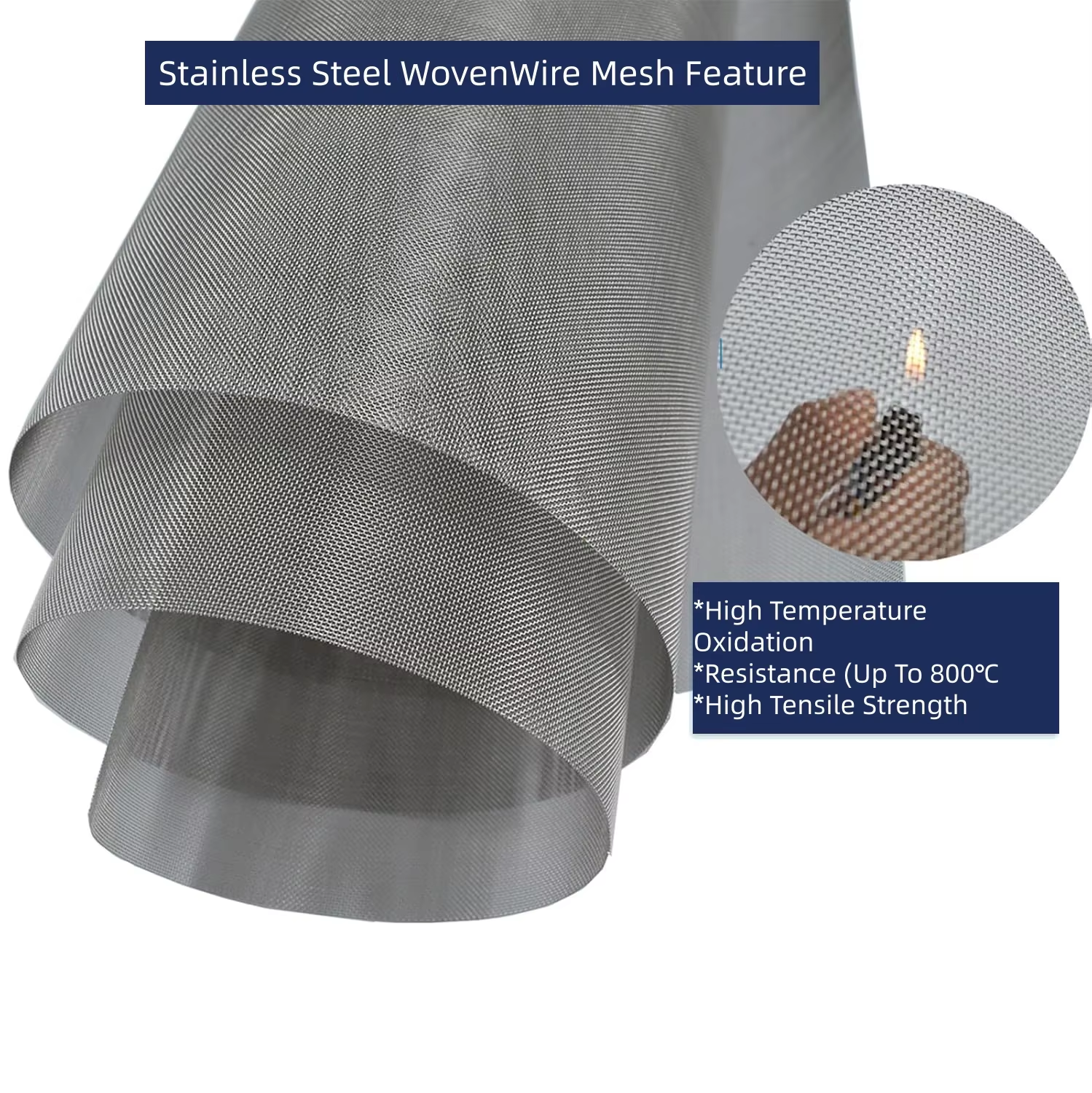

Corrosion resistance：After professional experimental testing Extremel
Advantage：The product tolerance complies with international
Feature：Superior performance in all aspects, safe material, wide

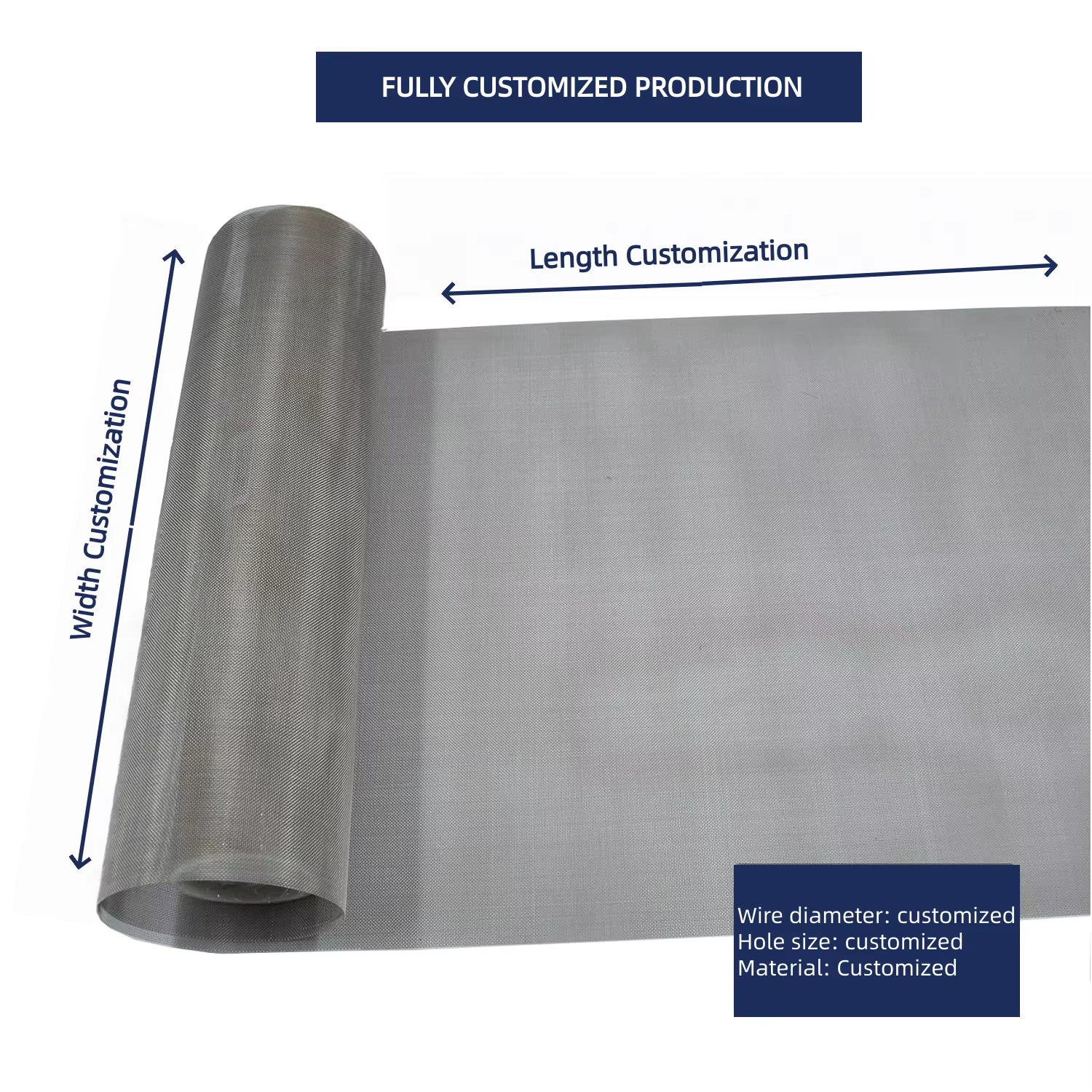

Specification customization: Wire Diameter, Mesh Count, Weave type Woven wire mesh is available on the roll or cut to size
Twill Woven:Each weft wire passes alternately over and under 2 warp wires, staggered on successive warps. It is generally used for weaving fine mesh and is suitable for fine filtration than plain weave.
★Why is the number of meshes important?
Filtration efficiency: A higher mesh size will block smaller particles, but may reduce flow rate.
Strength and precision: The lower the mesh size, the higher the durability; finer mesh size requires finer wire.
Material compatibility: High mesh size (such as 316L stainless steel) performs well in corrosive environments.
Product Size:For more sizes, please contact us!
Common Mesh Specifications ( Reference Data ) | |||||
Mesh | Aperture ( mm ) | Mesh | Aperture ( mm ) | Mesh | Aperture ( mm ) |
2 | 13 | 18 | 1 | 70 | 0.22 |
3 | 6.5 | 20 | 0.9 | 80 | 0.18 |
4 | 5 | 24 | 0.8 | 90 | 0.16 |
5 | 4 | 30 | 0.6 | 100 | 0.154 |
6 | 3.2 | 35 | 0.5 | 120 | 0.125 |
8 | 2.5 | 40 | 0.45 | 150 | 0.1 |
10 | 2 | 45 | 0.4 | 180 | 0.09 |
12 | 1.6 | 50 | 0.355 | 200 | 0.075 |
14 | 1.43 | 55 | 0.315 | 220 | 0.07 |
16 | 1.25 | 60 | 0.3 | 250 | 0.063 |
Key applications by mesh count:
<20 mesh: Mining screening, construction scaffolding, coarse particle separation.
20-100 mesh: Industrial screening (powders, granules), water treatment, and HVAC systems.
>100 mesh: Precision liquid filtration (pharmaceuticals, coatings), laboratory-grade particle analysis, and fine dust control.
Number1
Number2
Number3

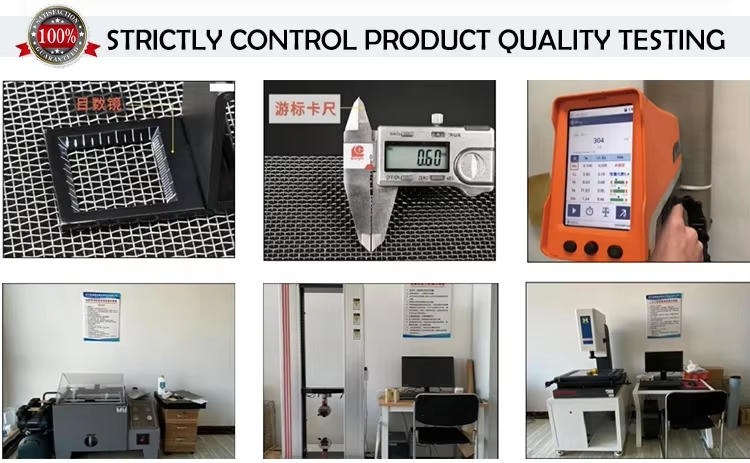

★Quality inspection
★Product application
By using the current high-precision wire mesh, it is expected to have higher advantages in precision, lifespan, size, cost, etc., to meet the needs of different industries for high-strength, high corrosion resistance, and high-precision metal based composite materials, which are applied in aerospace, semiconductor electronic devices, VC heat plates, biomedicine, medical equipment, electrical equipment, paper making, energy, high-precision filtration and screening, etc.
