Definition：

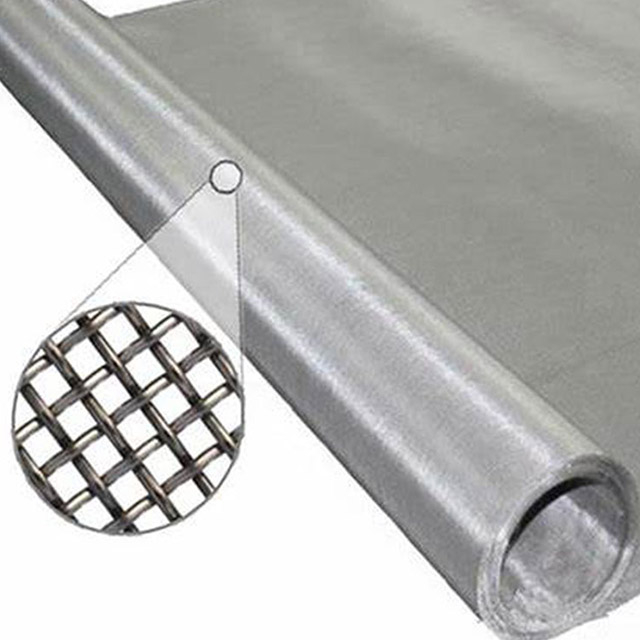

Plain weave stainless steel wire mesh refers to a weaving method in which each warp and weft passes through each warp and weft, with the same thickness as the warp and weft, and the warp and weft forming a 90 degree angle
Feature:
Characteristics of plain weave stainless steel wire mesh:
●The mesh is relatively square and the mesh size is uniform.
●The structure is stable and not easily deformed.
●High wear resistance and long service life.
●Accurate mesh size and easy to use.
●The screen thickness is uniform, heat resistant,anti-static, acid and alkali resistant, and corrosion-resistant.
Parameters and specifications of plain weave stainless steel wire mesh：
Common Mesh Specifications ( Reference Data ) | |||||
Mesh | Aperture ( mm ) | Mesh | Aperture ( mm ) | Mesh | Aperture ( mm ) |
2 | 13 | 18 | 1 | 70 | 0.22 |
3 | 6.5 | 20 | 0.9 | 80 | 0.18 |
4 | 5 | 24 | 0.8 | 90 | 0.16 |
5 | 4 | 30 | 0.6 | 100 | 0.154 |
6 | 3.2 | 35 | 0.5 | 120 | 0.125 |
8 | 2.5 | 40 | 0.45 | 150 | 0.1 |
10 | 2 | 45 | 0.4 | 180 | 0.09 |
12 | 1.6 | 50 | 0.355 | 200 | 0.075 |
14 | 1.43 | 55 | 0.315 | 220 | 0.07 |
16 | 1.25 | 60 | 0.3 | 250 | 0.063 |
●Material: SUS302, 304, 304L, 316, 316L, etc
●Weaving: Plain Weave, Plain Dutch Weave.
●Usually, manufactured in 30m ( up to 200) long and in width of 1m 1.2m 1.5m 2.0m etc. Or cut to length panels as client's requirement.
●Packing: Water-proof paper, woven bag and also can be made as per client requirement.
How is it woven?
In the plain weave process, warp and weft yarns are interwoven according to specific rules to form a stable mesh structure. This weaving method enables stainless steel wire mesh to maintain high strength while also having good filtering and screening performance.
Product application
The applications of plain weave stainless steel wire mesh are incredibly extensive,Covers industrial environments: It is wildly used in petroleum industry, chemical industry, environment protection, mine industry, airspace industry, paper-making, electronic industry, metallurgy industry, food industry, pharmacy etc.
Our customized services:
We can easily cut plain weave stainless steel wire mesh into various desired shapes according to specific requirements. Including but not limited to circles, rectangles, triangles, and other custom shapes. More importantly, it maintains its rigid structure even after cutting. Ensure that it can effectively perform its expected functions. For example, a circular plain weave stainless steel mesh can be used as a filter disc in industrial equipment, maintaining its shape to provide stable filtration. Rectangular components can serve as mechanical protective covers, and their rigid structure can prevent deformation under external pressure. Triangular or other irregularly shaped woven stainless steel wire mesh can be used for unique architectural designs or specialized industrial settings, where their ability to maintain shape is crucial.
