TJ-SS系列
TJ
SS001
Looking for a reliable stainless steel woven mesh supplier with fast turnaround and consistent quality? Tuojiang supplies SS304, SS316, and SS316L woven wire mesh direct from our factory in Anping, China — the world's largest wire mesh production hub. ISO certified, 20+ years in production, currently exporting to 30+ countries including the US, Australia, and the EU.
All mesh is produced on dedicated weaving lines with strict dimensional tolerances. Each roll is inspected before shipment. Custom specifications are welcomed and quoted within 24 hours.
Weave Types and Size
1.Plain Square Woven
The most common wire weave, with the same diameter warp and shute wires, woven in a simple over and under pattern.This style produces screens with the same mesh count in both directions.
The Common Mesh Count of Plain Weave | |||||
Mesh (inch) | Wire diameter(inch) | Aperture (inch) | Mesh (inch) | Wire diameter(inch) | Aperture (inch) |
2 | 0.063 | 0.437 | 60 | 0.007 | 0.010 |
5 | 0.041 | 0.159 | 80 | 0.006 | 0.007 |
10 | 0.025 | 0.075 | 100 | 0.004 | 0.007 |
14 | 0.020 | 0.051 | 120 | 0.037 | 0.006 |
18 | 0.017 | 0.039 | 150 | 0.003 | 0.004 |
20 | 0.016 | 0.034 | 180 | 0.002 | 0.003 |
24 | 0.014 | 0.028 | 200 | 0.002 | 0.003 |
30 | 0.009 | 0.024 | 300 | 0.005 | 0.002 |
40 | 0.010 | 0.015 | Custom mesh count, wire diameter, and aperture available on request. | ||
2.Twill Square Woven
Each shute wire typically passes over two warp wires and under two producing square openings. Twill weave can be made from larger-diameter wires than would be possible in plain square weave, to obtain greater strength, density, or corrosion resistance.
The Common Mesh Count of Twill Weave | |||||
Mesh (inch) | Wire diameter(inch) | Aperture (inch) | Mesh (inch) | Wire diameter(inch) | Aperture (inch) |
30 | 0.017 | 0.0163 | 400 | 0.0011 | 0.0014 |
60 | 0.011 | 0.0057 | 500 | 0.0010 | 0.001 |
80 | 0.007 | 0.0055 | 635 | 0.0008 | 0.0008 |
270 | 0.0016 | 0.0021 | |||
325 | 0.0014 | 0.0017 | Custom mesh count, wire diameter, and aperture available on request. | ||
3.Plain Dutch Woven
This weave style is woven in a plain, over and under pattern. The plain dutch woven wire style is a very tight weave because a thinner, smaller diameter shute wire is used. Dutch weaves do not have a straight-through, clear opening like most plain weave styles. Instead, the weave style creates a tortuous path through which very fine filtration and particle retention can be achieved. Dutch weaves may be specified by a “mesh count” or an “absolute filter rating.”
The Common Mesh Count of Plain Dutch Weave | ||
Mesh (inch) | Wire diameter(inch) | Absolute Filtration Fineness (µm) |
8 × 85 | 0.014 × 0.0126 | 318-340 |
12 × 64 | 0.024 × 0.0165 | 270-285 |
14 × 88 | 0.020 × 0.013 | 225-245 |
20 × 150 | 0.0098 × 0.007 | 155-165 |
24 × 100 | 0.015 × 0.010 | 115-125 |
30 × 150 | 0.009 × 0.007 | 95-100 |
40 × 200 | 0.007 × 0.0055 | 65-70 |
50 × 250 | 0.0055 × 0.0045 | 55-60 |
80 × 400 | 0.0049 × 0.0028 | 43-48 |
Custom mesh count, wire diameter, and aperture available on request. | ||
4.Dutch Twill Weave
This weave style is similar to Plain Dutch, except it is woven in Twill style. Each wire passes over two wires then under two wires, still utilizing a smaller-diameter shute wire, allowing an even tighter weave and even finer filtration than the Plain Dutch weave.
The Common Mesh Count of Twill Dutch Weave | ||
Mesh (inch) | Wire diameter(inch) | Absolute Filtration Fineness (µm) |
20 × 250 | 0.0098 × 0.079 | 110-120 |
30 × 360 | 0.0098 × 0.0060 | 90-100 |
120 × 400 | 0.0040 × 0.0025 | 50-55 |
80 × 700 | 0.0040 × 0.0030 | 35-40 |
165 × 800 | 0.0028 × 0.0020 | 24-26 |
200 × 600 | 0.0024 × 0.0018 | 28-32 |
250 × 1400 | 0.0022 × 0.0016 | 11-12 |
325 × 2300 | 0.0015 × 0.0010 | 8-9 |
Custom mesh count, wire diameter, and aperture available on request. | ||
Material Options
| Grade | Key Properties | Common Applications |
|---|---|---|
| SS 302 | Good corrosion resistance | General industrial use |
| SS 304 | Standard grade, cost-effective | Food processing, general filtration |
| SS 304L | Low carbon, better weld resistance | Welded assemblies |
| SS 316 | Superior corrosion & chemical resistance | Pharmaceutical, marine, chemical |
| SS 316L | Low carbon 316, highest corrosion resistance | Aggressive chemical environments |
Applications

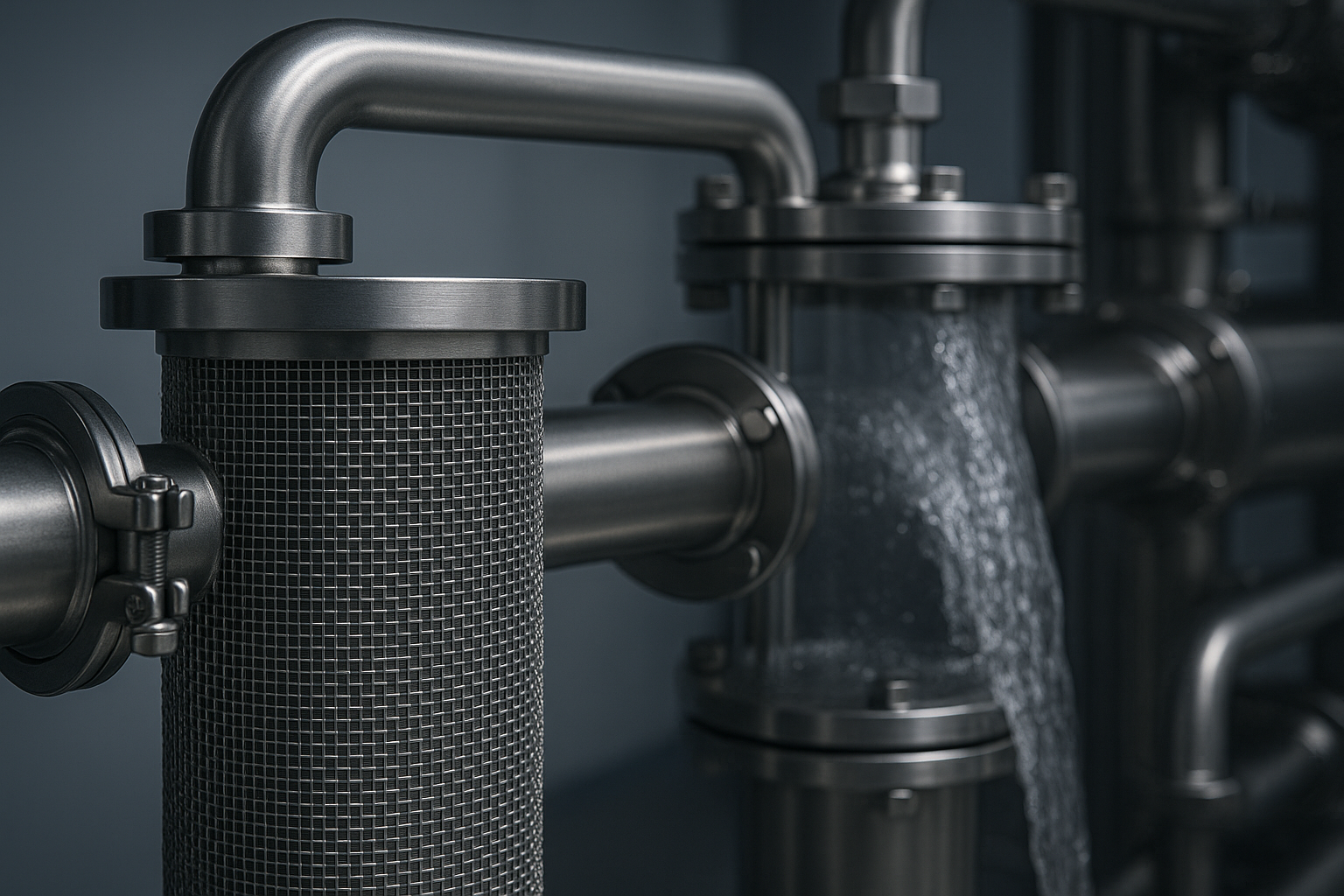

Industrial filtration and separation
Pharmaceutical and food processing screening
Chemical and petrochemical filtration

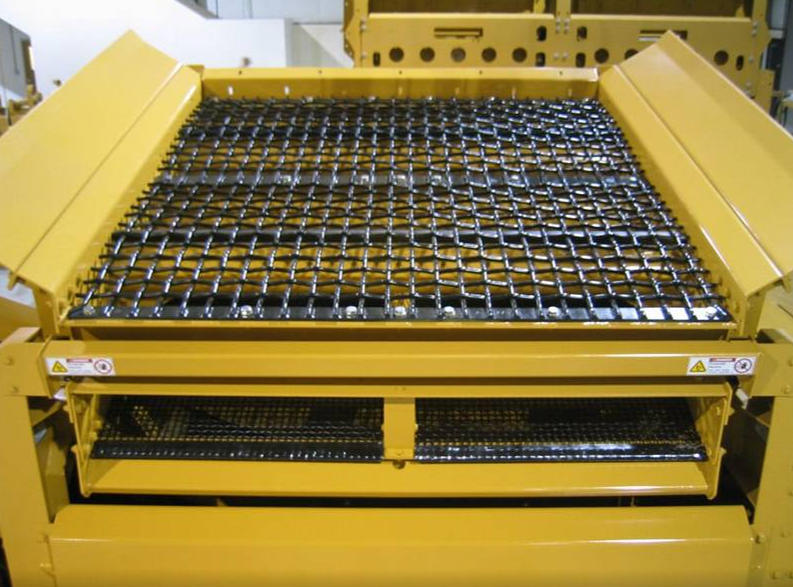

Mining and aggregate screening

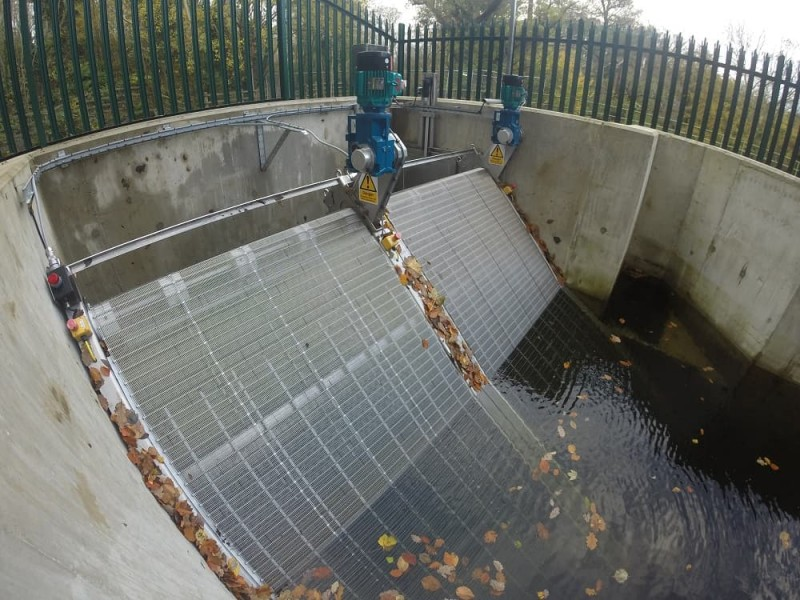

Water treatment and environmental filtration
Why Tuojiang
20+ years of woven wire mesh manufacturing experience
ISO 9001 certified production facility
Anping County, Hebei – world's largest wire mesh manufacturing base
30+ countries served including USA, Australia, Germany, UAE
Custom specifications available — send us your drawing or requirements
Order Information
| MOQ | 5roll |
| Lead Time | 3–7 business days (custom orders) |
| Standard Roll Width | 1m / 1.22m / 1.5m (custom available) |
| Certification | ISO 9001 |
| Payment | T/T,L/C,Bank Transfer, Bank Draft |
| Shipping | FOB Tianjin / Qingdao/Freight Forwarder |
