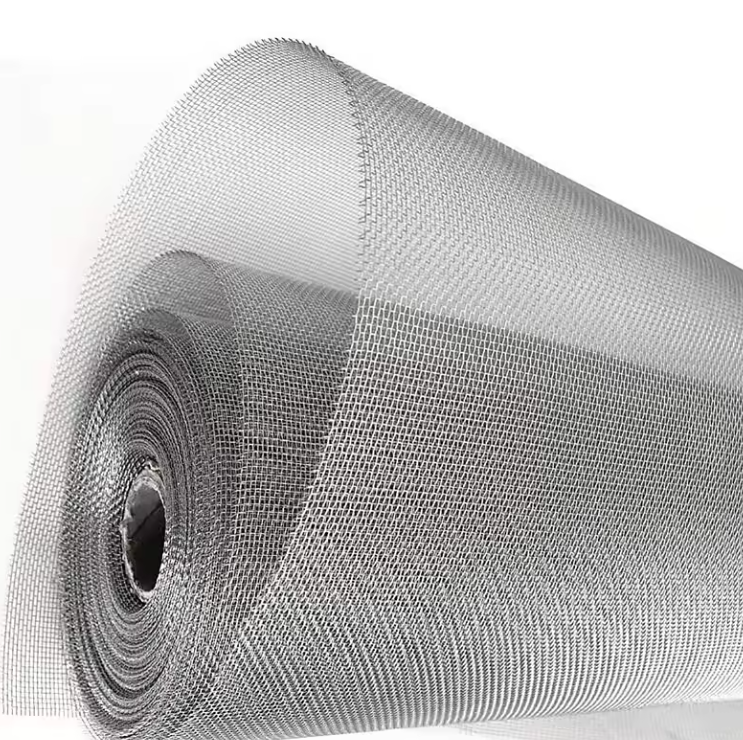

Stainless Steel
Wire Gauze Mesh
(304/316)
Fine Filter Mesh for Industrial Filtration
•fine filtration
•industrial screening
•laboratory sieving
Specifications
•Material: Stainless Steel 304 / 316 / 316L
•Mesh Count: 10–500 mesh
•Wire Diameter: 0.02–2.0 mm
•Aperture Size: 0.025–2.0 mm
•Weaving Type: Plain Weave / Twill Weave
•Standard Roll Width: 1m / 1.2m
•Length: 30m / 50m or custom
•Form: Rolls or cut-to-size sheets
Technical Data(Example Specification Table)
| Mesh | Wire Diameter (mm) | Aperture (mm) | Open Area (%) | Material | Weave |
|---|---|---|---|---|---|
| 20 | 0.18 | 0.87 | 61 | 304/316 | Plain |
| 40 | 0.14 | 0.49 | 40 | 304/316 | Plain |
| 80 | 0.12 | 0.29 | 34 | 304/316 | Plain/Twill |
| 150 | 0.07 | 0.11 | 30 | 316L | Twill |
| 400 | 0.03 | 0.03 | 30 | 316L | Twill |
Key Features Applications
•High precision filtration •Chemical and petroleum filtration
•Excellent corrosion resistance •Laboratory analysis and fine sieving
•Heat resistantance •Water and gas filtration systems
•Strong tensile strength •Industrial screening and separation
•Available in cut-to-size or full rolls • Filter cartridges, filter elements, and precision units
