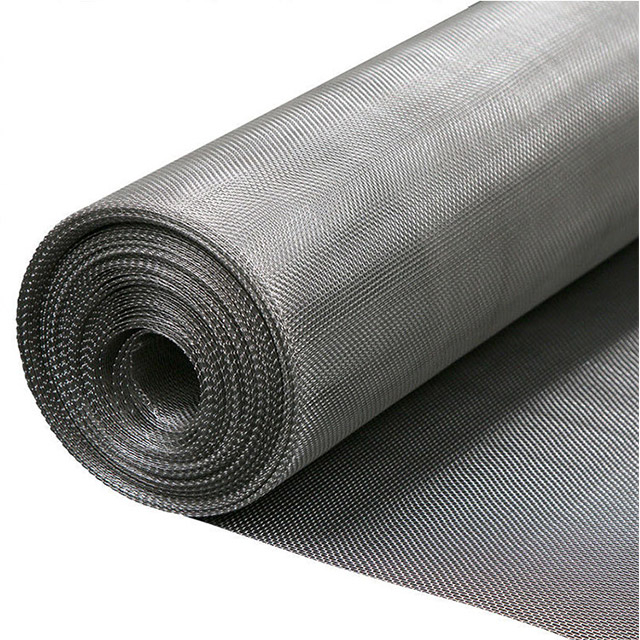

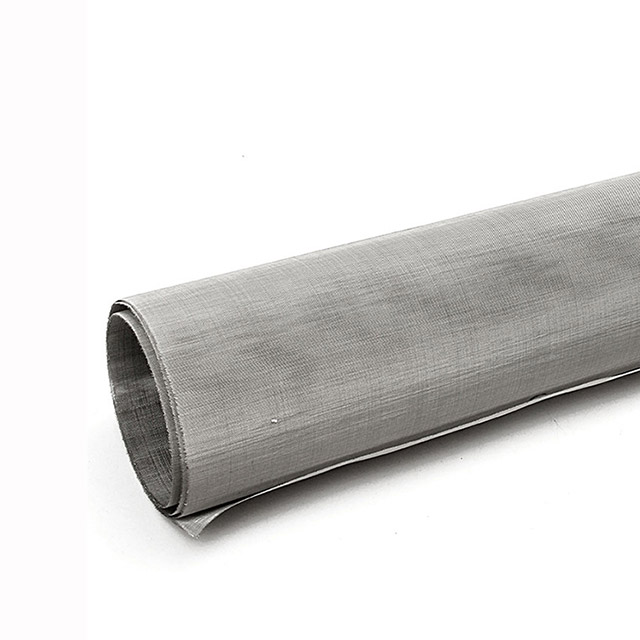

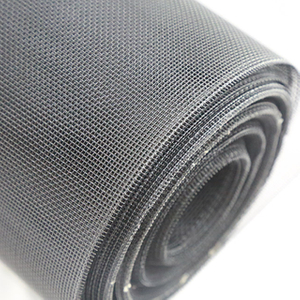

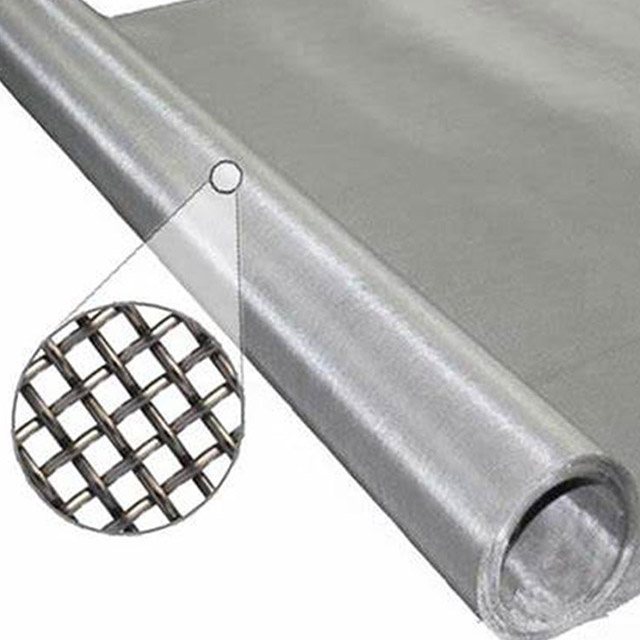

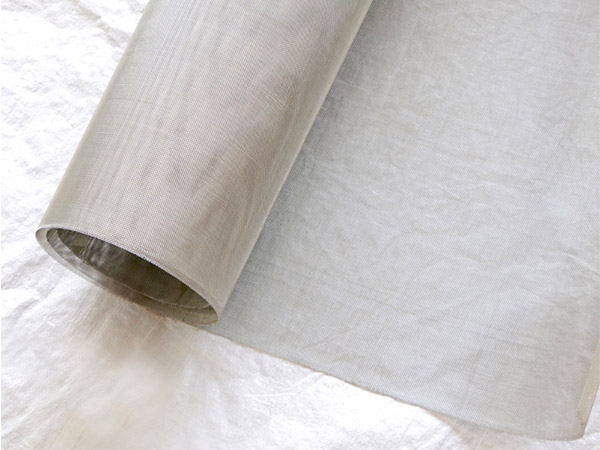

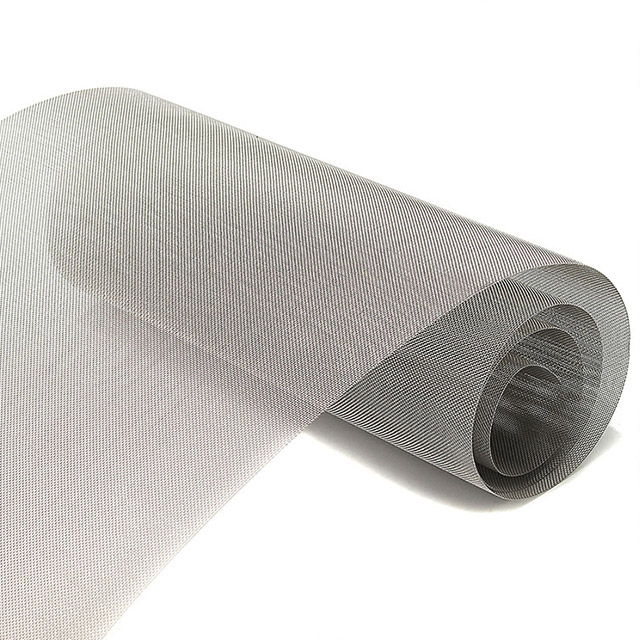

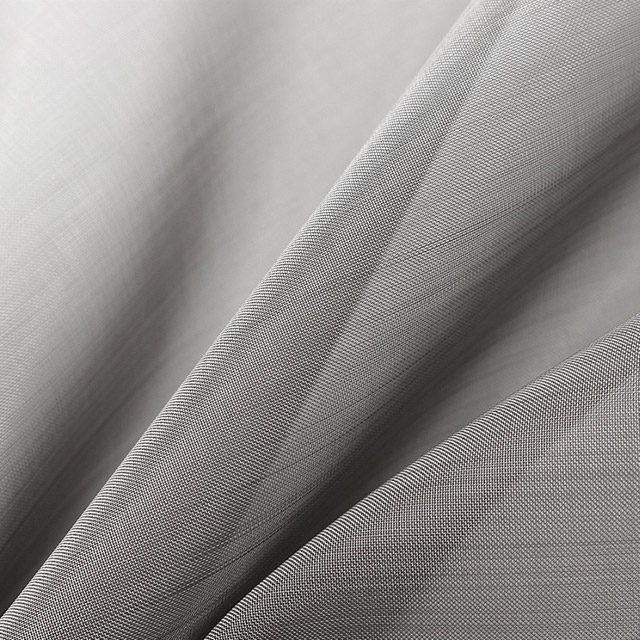

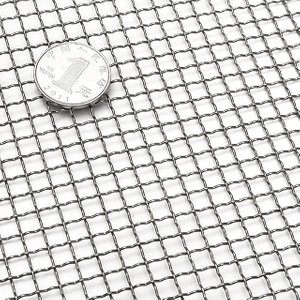

The filter screen sheet is made of premium stainless steel with fine workmanship, anti-rust and wear-resistant. 304 stainless steel fine wire woven mesh is resistant to high temperature of 800°C, easy to maintain, uniform structure, flat mesh surface, durable material, can be cut into suitable shapes and sizes according to the needs and scenarios
Woven Wire Mesh, Wire Cloth Supply | Custom Manufacturing | Factory Price
Woven wire mesh Stainless steel available: 304, 304L, 316, 316L, 310s, 904L, 430, etc
More materials available: Copper, Brass, Bronze, Inconel, Monel, Nickel, Titanium, Duplex，Molybedenum etc
Specification customization: Wire Diameter, Mesh Count, Weave type Woven wire mesh is available on the roll or cut to size
Product Size
Common Mesh Specifications ( Reference Data ) | |||||
Mesh | Aperture ( mm ) | Mesh | Aperture ( mm ) | Mesh | Aperture ( mm ) |
2 | 13 | 18 | 1 | 70 | 0.22 |
3 | 6.5 | 20 | 0.9 | 80 | 0.18 |
4 | 5 | 24 | 0.8 | 90 | 0.16 |
5 | 4 | 30 | 0.6 | 100 | 0.154 |
6 | 3.2 | 35 | 0.5 | 120 | 0.125 |
8 | 2.5 | 40 | 0.45 | 150 | 0.1 |
10 | 2 | 45 | 0.4 | 180 | 0.09 |
12 | 1.6 | 50 | 0.355 | 200 | 0.075 |
14 | 1.43 | 55 | 0.315 | 220 | 0.07 |
16 | 1.25 | 60 | 0.3 | 250 | 0.063 |
For more sizes, please contact us
What does mesh count mean?
Mesh count (or "mesh count") refers to the number of openings per linear inch in a stainless steel mesh. It directly determines the pore size (aperture) and filtration accuracy - higher mesh counts mean smaller pores and finer filtration. For example:
Low mesh (≤20 mesh): Ideal for heavy-duty screening, ventilation, or structural reinforcement.
Medium mesh (20-100 mesh): Widely used in food processing (such as flour screening), chemical filtration, and aggregate grading.
High mesh (≥100 mesh): Ultra-fine pore size, designed for critical applications such as pharmaceutical filtration, microelectronics, or insect screens.
Key applications by mesh count:
<20 mesh: Mining screening, construction scaffolding, coarse particle separation.
20-100 mesh: Industrial screening (powders, granules), water treatment, and HVAC systems.
>100 mesh: Precision liquid filtration (pharmaceuticals, coatings), laboratory-grade particle analysis, and fine dust control.
Why is the number of meshes important?
Filtration efficiency: A higher mesh size will block smaller particles, but may reduce flow rate.
Strength and precision: The lower the mesh size, the higher the durability; finer mesh size requires finer wire (such as 200 mesh 0.05mm wire).
Material compatibility: High mesh size (such as 316L stainless steel) performs well in corrosive environments.
Product application

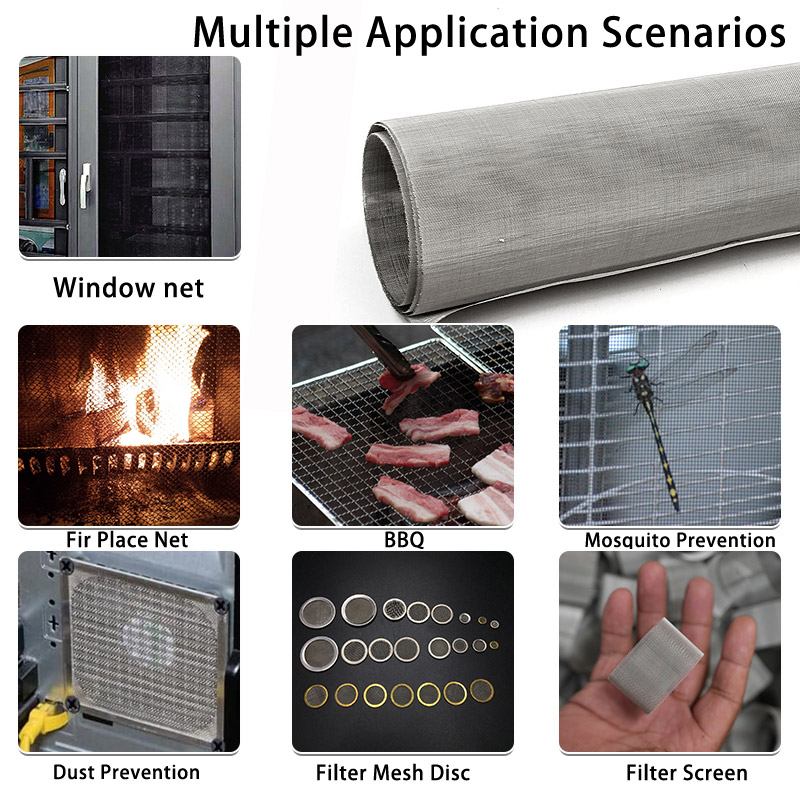

By using the current high-precision wire mesh, it is expected to have higher advantages in precision, lifespan, size, cost, etc., to meet the needs of different industries for high-strength, high corrosion resistance, and high-precision metal based composite materials, which are applied in aerospace, semiconductor electronic devices, VC heat plates, biomedicine, medical equipment, electrical equipment, paper making, energy, high-precision filtration and screening, etc.
