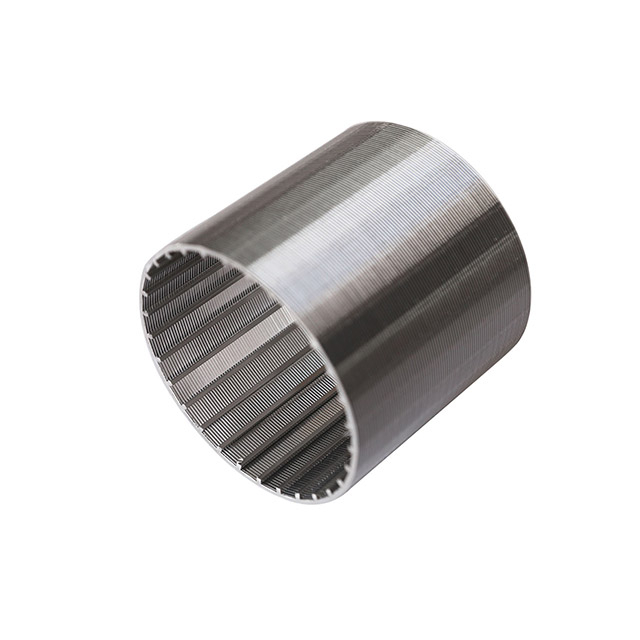

A wire-wrapped screen pipe is a perforated pipe, often with a base pipe and an outer screen,
used for filtration in oil, gas, and water wells.
Benefits ★Precise filtration: The slot size can be customized to match the specific size of sand,
ensuring better sand control. ★Energy savings: Reduced frictional head loss can lead to lower power requirements. ★Reduced maintenance: Better sand control reduces wear on pumps, leading to longer pump life. ★Durability: The strong, welded structure is suitable for harsh environments.
Construction and features

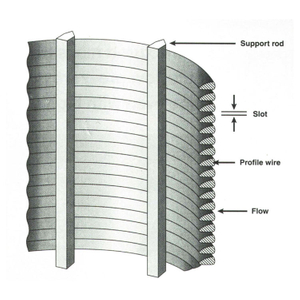

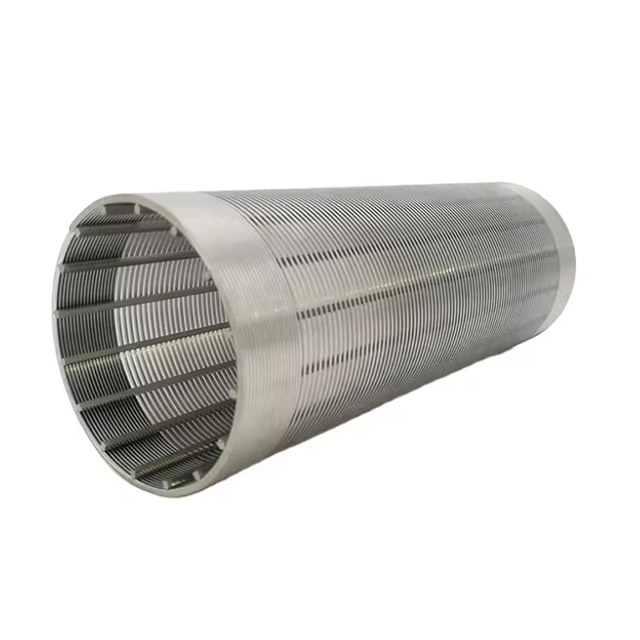

●Base pipe: A standard API-grade pipe acts as the structural support.

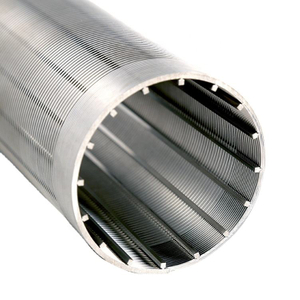

●Profile wire: A V-shaped or trapezoidal wire is wrapped around the support rods.

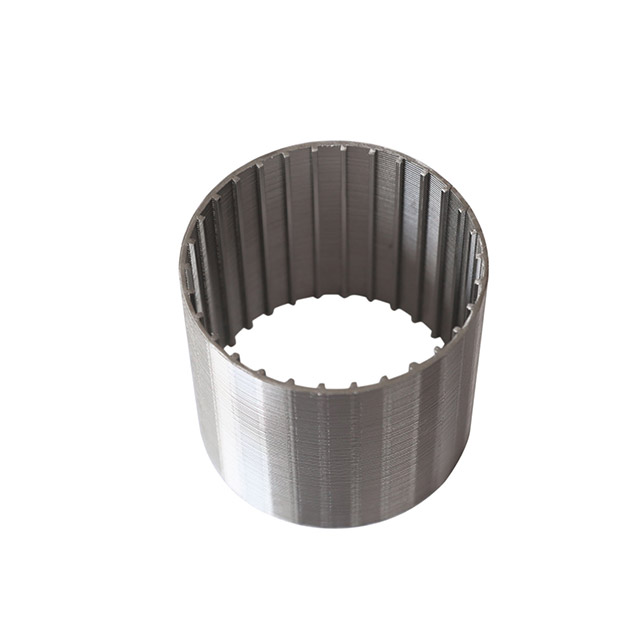

●Support rods: These are longitudinal rods that are resistance-welded to the profile wire at every contact point.
●V-shaped slots: The design of the V-shaped wire creates a continuous slot that minimizes clogging by allowing particles just smaller than the slot width to pass through.
●Continuous slots: The welding process ensures a continuous and consistent slot opening along the entire length of the screen.
●Large open area: This design provides a larger open area compared to conventional slotted pipes, which improves water entry and reduces head loss.
●High strength: The fully welded design provides high pressure bearing capacity and strength, with the screen's tensile strength being over 80% of the base pipe's.

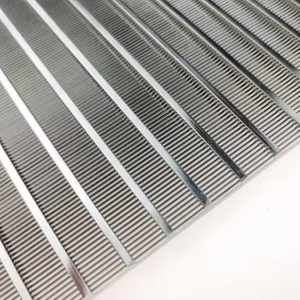

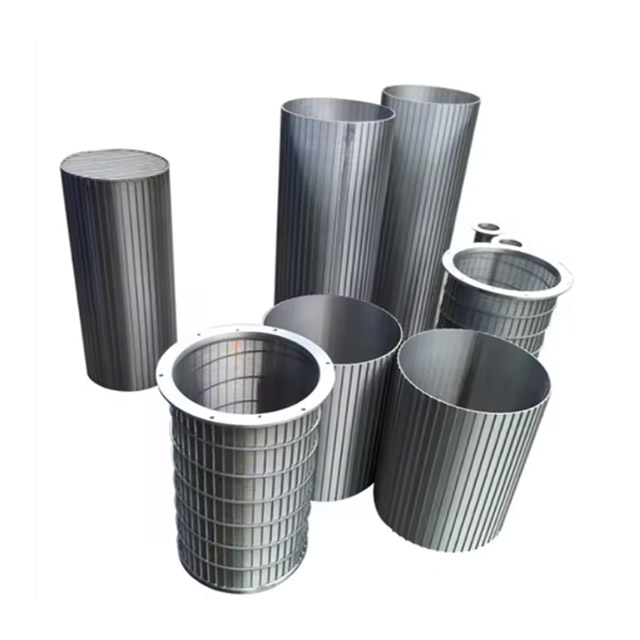

Johnson Screen or profile screen is in flat, curved or cylindrical panels made of looped, round and/or wedge shaped woven wires for precise openings.It is supplied in stainless steel and other special steel metals and alloy metal screens, mainly used on dewatering equipment.
Johnson Screen is made with certain size of woven wire cloth as screen fabrics, then framed with stainless steel or coated carbon steel plates. offering great strenght.
precision ,long service life.
Material | SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc | ||||||
Length Range | Up to 6000mm | ||||||
Width Range | Up to 6000mm | ||||||
Slot Range | 20 micron to 3000 micron (Tolerance:+-5 micron) | ||||||
Other Shapes | Could cut to any shape according to requirement, such as round, semicircle, sector, and so on. | ||||||
Wedge Wire | 0.5X1.5 | 0.75X1.5 | 1X2 | 1.5X2 | 2X3 | 2X4 | 3X5 |
Support Rod | 1.5X2.5 | 1.5X2.5 | 1.5X2.5 | 1.8X2.5 | 2X3 | 2X4 | 3X5 |
End Finishing | With the frame, without any frame, according to request. | ||||||
Note | Customized According To Requirement | ||||||
Product Feature
1. the mechanical strength is high and can withstand a large pressure difference;
2. the filter gap is uniform, can form a relatively uniform filter cake, which is conducive
to backwash regeneration;
3. the wedge-shaped filter gap can improve the backwash regeneration ability;
4. pressure, temperature, anti-aging, anti-corrosion, can be applied to a variety of fluids.
5. the metal wedge mesh filter core uses metal wedge wire mesh (Johnson tube) as the filter element, which has the advantages of high mechanical strength, high pressure difference, easy flushing and regeneration, etc. Nearly two-dimensional filter has no dead spots of particle accumulation, and the wedge-shaped gap is reversed. The backwashing energy can be gathered when flushing, and the backwashing effect is good.
Product application
The product is especially suitable for waxy oil, asphalt, diesel, beer, and high viscosity oil.
It is widely used in electric power industry, natural gas well, petrochemical industry, chemical industry, mining,paper making, environmental protection, metallurgy, food, sand control, Coarse filtration and fine filtration engineering for water treatment in industries such as decoration.
Construction and features
●Base pipe: A standard API-grade pipe acts as the structural support.
●Profile wire: A V-shaped or trapezoidal wire is wrapped around the support rods.
●Support rods: These are longitudinal rods that are resistance-welded to the profile wire at every contact point.
●V-shaped slots: The design of the V-shaped wire creates a continuous slot that minimizes clogging by allowing particles just smaller than the slot width to pass through.
●Continuous slots: The welding process ensures a continuous and consistent slot opening along the entire length of the screen.
●Large open area: This design provides a larger open area compared to conventional slotted pipes, which improves water entry and reduces head loss.
●High strength: The fully welded design provides high pressure bearing capacity and strength, with the screen's tensile strength being over 80% of the base pipe's.
Johnson Screen or profile screen is in flat, curved or cylindrical panels made of looped, round and/or wedge shaped woven wires for precise openings.It is supplied in stainless steel and other special steel metals and alloy metal screens, mainly used on dewatering equipment.
Johnson Screen is made with certain size of woven wire cloth as screen fabrics, then framed with stainless steel or coated carbon steel plates. offering great strenght.
precision ,long service life.
Material | SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc | ||||||
Length Range | Up to 6000mm | ||||||
Width Range | Up to 6000mm | ||||||
Slot Range | 20 micron to 3000 micron (Tolerance:+-5 micron) | ||||||
Other Shapes | Could cut to any shape according to requirement, such as round, semicircle, sector, and so on. | ||||||
Wedge Wire | 0.5X1.5 | 0.75X1.5 | 1X2 | 1.5X2 | 2X3 | 2X4 | 3X5 |
Support Rod | 1.5X2.5 | 1.5X2.5 | 1.5X2.5 | 1.8X2.5 | 2X3 | 2X4 | 3X5 |
End Finishing | With the frame, without any frame, according to request. | ||||||
Note | Customized According To Requirement | ||||||
Product Feature
1. the mechanical strength is high and can withstand a large pressure difference;
2. the filter gap is uniform, can form a relatively uniform filter cake, which is conducive
to backwash regeneration;
3. the wedge-shaped filter gap can improve the backwash regeneration ability;
4. pressure, temperature, anti-aging, anti-corrosion, can be applied to a variety of fluids.
5. the metal wedge mesh filter core uses metal wedge wire mesh (Johnson tube) as the filter element, which has the advantages of high mechanical strength, high pressure difference, easy flushing and regeneration, etc. Nearly two-dimensional filter has no dead spots of particle accumulation, and the wedge-shaped gap is reversed. The backwashing energy can be gathered when flushing, and the backwashing effect is good.
Product application
The product is especially suitable for waxy oil, asphalt, diesel, beer, and high viscosity oil.
It is widely used in electric power industry, natural gas well, petrochemical industry, chemical industry, mining,paper making, environmental protection, metallurgy, food, sand control, Coarse filtration and fine filtration engineering for water treatment in industries such as decoration.
