Stainless steel wire mesh is made by stainless steel wire and then woven together to form a square opening or oblong opening.Up to 1470℉ (800℃) can this rack handle.Due to its own characteristics of stainless steel, the stainless steel mesh processed has high wear resistance, long service life，accurate mesh, uniform structure, no curl, easy to use, uniform screen thickness, anti-static, anti-acid and alkali resistance Corrosion.

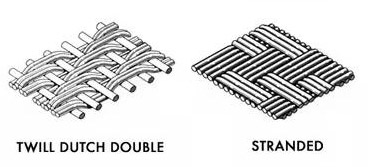

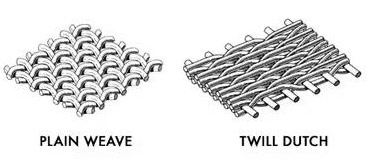

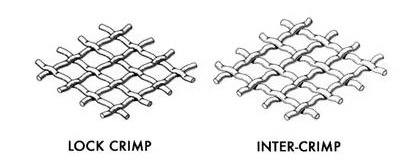

Weaving method
For more sizes, please contact us
Common Mesh Specifications ( Reference Data ) | |||||
Mesh | Aperture ( mm ) | Mesh | Aperture ( mm ) | Mesh | Aperture ( mm ) |
2 | 13 | 18 | 1 | 70 | 0.22 |
3 | 6.5 | 20 | 0.9 | 80 | 0.18 |
4 | 5 | 24 | 0.8 | 90 | 0.16 |
5 | 4 | 30 | 0.6 | 100 | 0.154 |
6 | 3.2 | 35 | 0.5 | 120 | 0.125 |
8 | 2.5 | 40 | 0.45 | 150 | 0.1 |
10 | 2 | 45 | 0.4 | 180 | 0.09 |
12 | 1.6 | 50 | 0.355 | 200 | 0.075 |
14 | 1.43 | 55 | 0.315 | 220 | 0.07 |
16 | 1.25 | 60 | 0.3 | 250 | 0.063 |
Stainless Steel Filter Wire Mesh Screen Applications
① Widely used in petroleum,foodstuff,chemical industry,construction, electric power,nuclear,energy,machinery,biotechnology,paper making,shipbuilding,boiler fields.
Pipes also can be made according to the customer's required.
② Stainless steel woven wire mesh is widely used for filtering, protection, printing, and decorating.
③ Stainless steel woven wire mesh can be used as woven wire filter cloth to filter liquid, solid and gas in the filtering industries, such as the filter discs, filter tubes, dipping baskets, test sieves, filter elements or strainers.
④ The stainless steel woven wire mesh can be used in architectural buildings as the decorative woven wire mesh.
⑤ Stainless steel woven wire mesh screen can be used for window screen and door screen to prevent insects from entering the houses.
⑥ The stainless steel is woven wire cloth is widely used in printing electronics, textiles, ceramics, glass and other industries.
