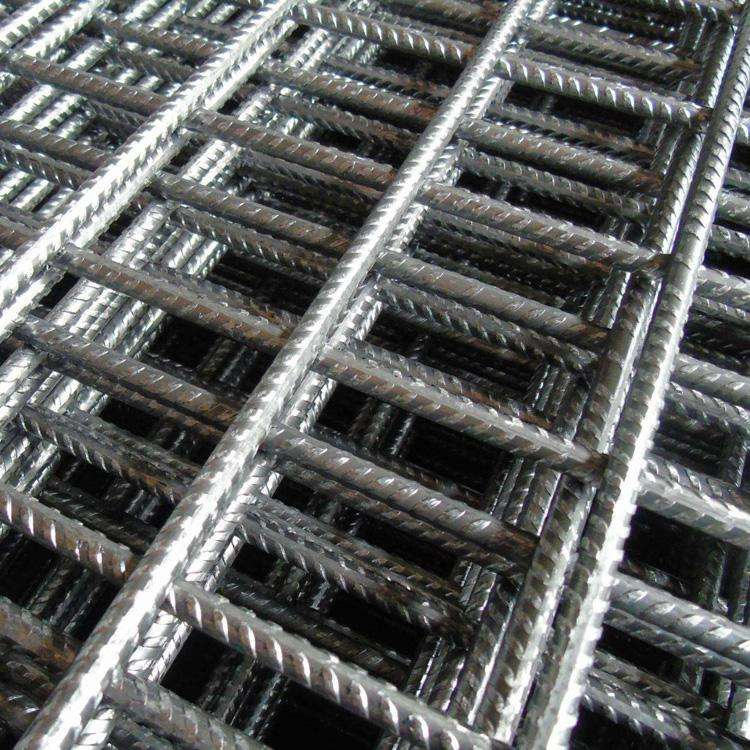

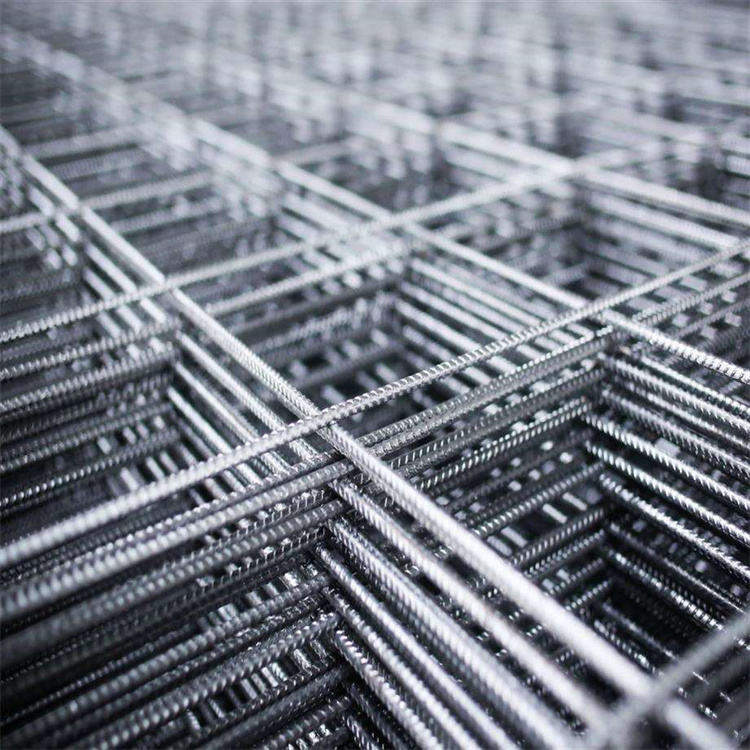

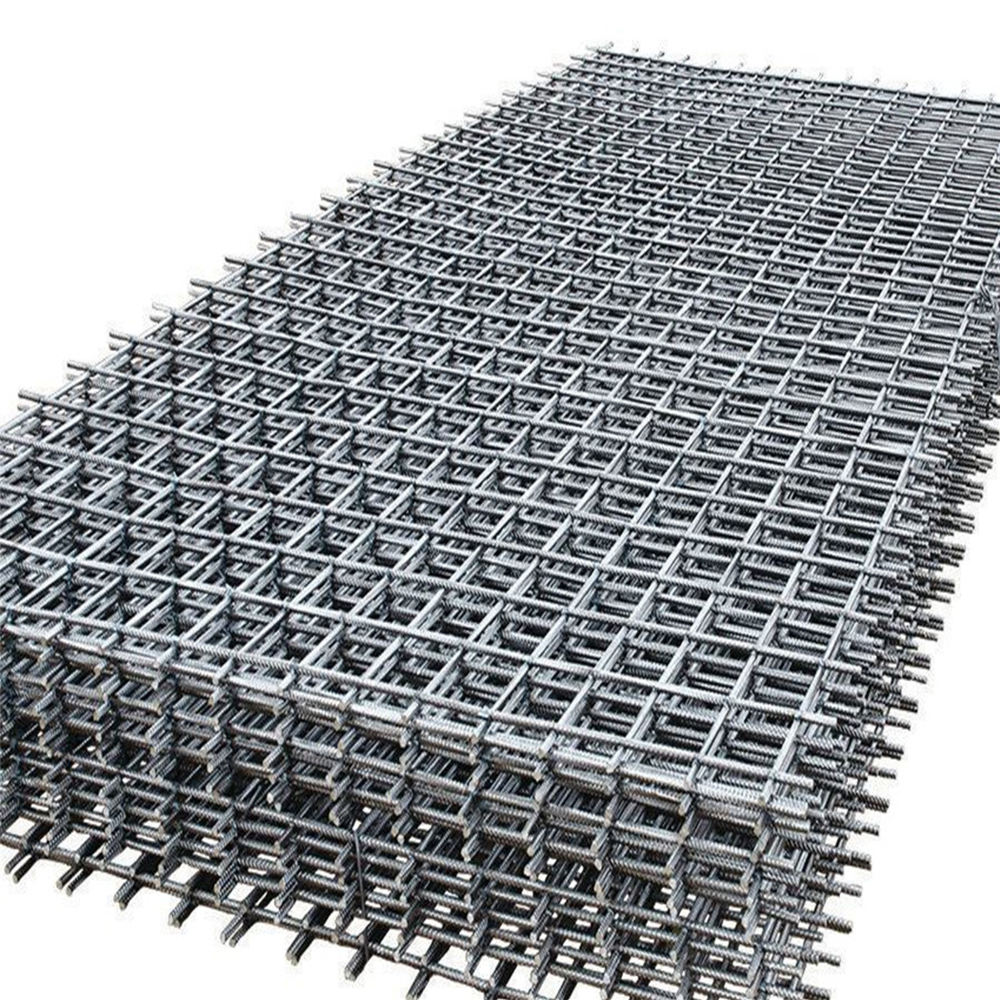

Concrete reinforcing mesh is a kind of Welded Wire Reinforcing Mesh, so it's also called reinforcing welded mesh.
It's made of carbon steel or stainless steel, including rectangular reinforcing mesh, square reinforcing mesh, and trench mesh. With high strength and firm structure, the concrete reinforcing mesh can greatly improve the bonding to concrete and minimize the concrete cracking. It's extensively used for reinforcement of building foundations, road surfaces, and bridge decks. Besides, the reinforcing bar supports and tie wires are also important and necessary to secure the reinforcing mesh in the concrete structures.
| Specifications and Technical Indicators | ||||
| Rebar level | Specifications | Tensile Strength (N/mm²) | Elongation (δ10, δ100) | Cold Bend 180 (D = Bending core diameter) |
| CRB550 | φR4mm - φR12mm | ≥550 | ≥8 | D = 3d |
| CRB650 | φR5mm | ≥650 | ≥4 | D = 4d |
| CRB800 | φR5mm | ≥800 | ≥4 | D = 5d |
Types of Reinforcing Mesh:

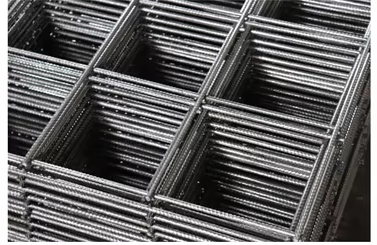

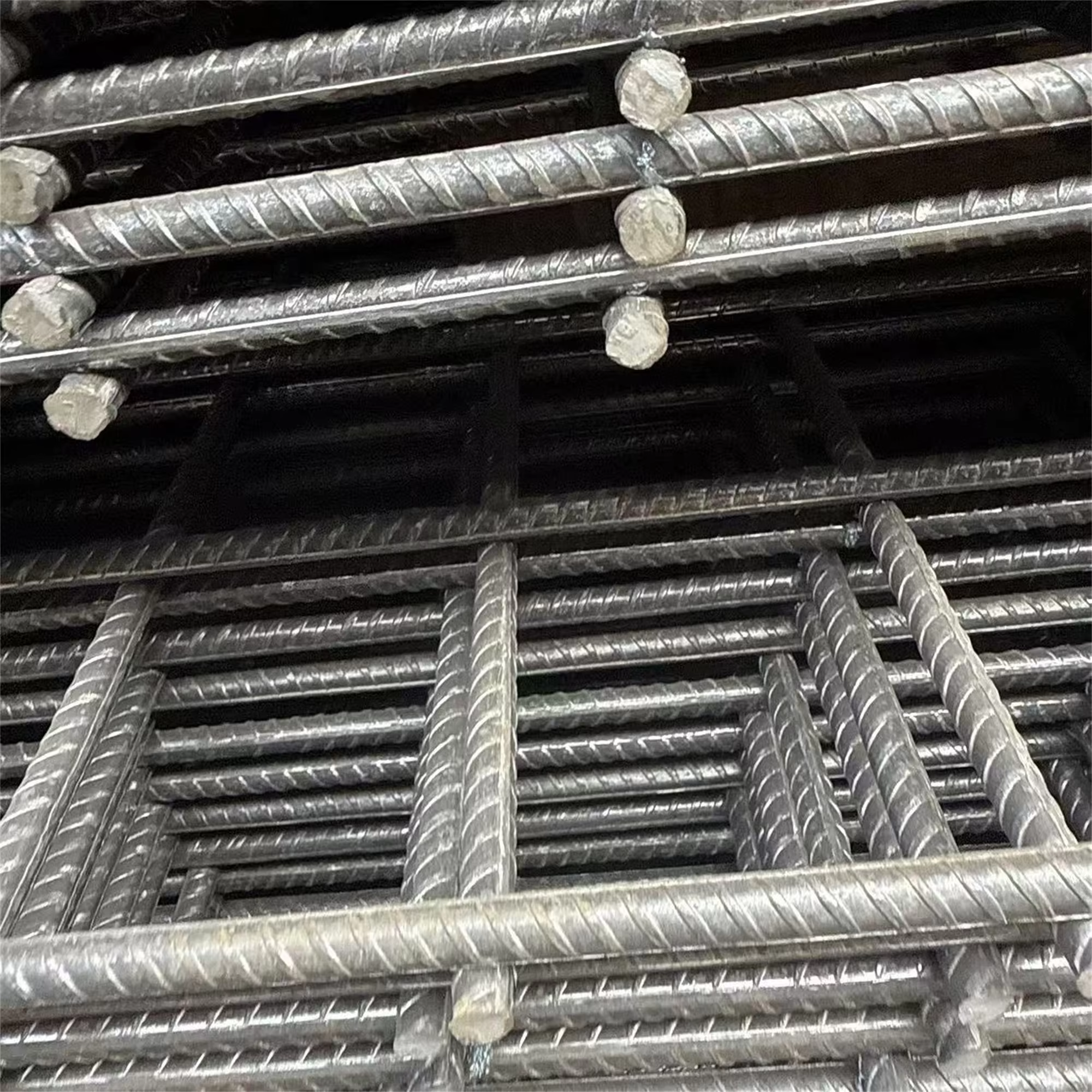

① Square Reinforcing Mesh
The square reinforcing mesh is a universal galvanized grid plate, which ismanufactured of high-quality ribbed steel rebars and is used for flat concretereinforcement.The L-grade ribbed steel rebars are welded together at equalintervals to form a square hole pattern.Ribbed square reinforcing mesh is a multifunctional reinforcing fabric used inmodern concrete structures, Widely used in reinforced concrete slabs fordriveways, patios, pavement areas, sheds, precast panels, and other flatconcrete elements
②Rectangular Reinforcing Mesh
Rectangular reinforcing mesh is also manufactured from Lgrade ribbed rebars(D500L) that are welded together with different spacing in each direction toform a rectangular grid.This mesh is used for reinforcing thin concrete elements such as floor slabs andwalls,patios, tilt-up slabs, and other industrial or warehouse applications,where more strength is required in one direction than the other.

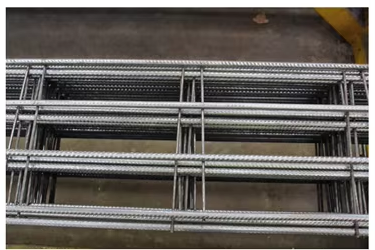

③Trench reinforcing mesh
Trench reinforcing mesh sheets are manufactured for the purpose ofresidential footing trenches and/or industrial building concrete footing andbeam reinforcement.Trench mesh common uses include rock walls,brick walls and house footingsand used specifically for residential footing trenches.
Welded wire mesh is mainly distinguished based on the chemical composition of the steel, tensile strength, yield strength, elongation requirements, and wire diameter requirements.We can provide reinforced concrete mesh according to the standards of the following countries.
1. BS 4483:2005:
Square Mesh Fabric 200mm × 200mm
| BS Ref No. | Line Wire Pitch (mm) | Cross Wire Pitch (mm) | Line Wire Dia (mm) | Cross Wire Dia (mm) | Line Wire Area (mm²/m) | Cross Wire Area (mm²/m) | Mass (kg/m²) | Sheets per Ton |
|---|---|---|---|---|---|---|---|---|
| A393 | 200 | 200 | 10 | 10 | 393 | 393 | 6.16 | 15 |
| A252 | 200 | 200 | 8 | 8 | 252 | 252 | 3.95 | 22 |
| A193 | 200 | 200 | 7 | 7 | 193 | 193 | 3.02 | 29 |
| A142 | 200 | 200 | 6 | 6 | 142 | 142 | 2.22 | 40 |
| A98 | 200 | 200 | 5 | 5 | 98 | 98 | 1.54 | 57 |
Structural Mesh Fabric 100mm × 200mm
| BS Ref No. | Line Wire Pitch (mm) | Cross Wire Pitch (mm) | Line Wire Dia (mm) | Cross Wire Dia (mm) | Line Wire Area (mm²/m) | Cross Wire Area (mm²/m) | Mass (kg/m²) | Sheets per Ton |
|---|---|---|---|---|---|---|---|---|
| B1131 | 100 | 200 | 12 | 8 | 1131 | 252 | 10.90 | 8 |
| B785 | 100 | 200 | 10 | 8 | 785 | 252 | 8.14 | 11 |
| B503 | 100 | 200 | 8 | 8 | 503 | 252 | 5.93 | 15 |
| B385 | 100 | 200 | 7 | 7 | 385 | 193 | 4.53 | 20 |
| B283 | 100 | 200 | 6 | 7 | 283 | 193 | 3.73 | 24 |
| B196 | 100 | 200 | 5 | 7 | 196 | 193 | 3.05 | 29 |
Long Mesh Fabric 100mm × 400mm
| BS Ref No. | Line Wire Pitch (mm) | Cross Wire Pitch (mm) | Line Wire Dia (mm) | Cross Wire Dia (mm) | Line Wire Area (mm²/m) | Cross Wire Area (mm²/m) | Mass (kg/m²) | Sheets per Ton |
|---|---|---|---|---|---|---|---|---|
| C785 | 100 | 400 | 10 | 6 | 785 | 70.8 | 6.72 | 13 |
| C636 | 100 | 400 | 9 | 6 | 636 | 70.8 | 5.55 | 16 |
| C503 | 100 | 400 | 8 | 5 | 503 | 49.0 | 4.34 | 21 |
| C385 | 100 | 400 | 7 | 5 | 386 | 49.0 | 3.41 | 26 |
| C283 | 100 | 400 | 6 | 5 | 283 | 49.0 | 2.61 | 34 |
Wrapping Mesh
| BS Ref No. | Line Wire Pitch (mm) | Cross Wire Pitch (mm) | Line Wire Dia (mm) | Cross Wire Dia (mm) | Line Wire Area (mm²/m) | Cross Wire Area (mm²/m) | Mass (kg/m²) | Sheets per Ton |
|---|---|---|---|---|---|---|---|---|
| D98 | 200 | 200 | 5 | 5 | 98 | 98 | 1.54 | 57 |
| D49 | 100 | 100 | 2.5 | 2.5 | 49 | 49 | 0.77 | 113 |
2.Australia/New Zeland AS/NZS 4671: 2001:
Square Mesh
| Ref No. | Line Wire Dia (mm) | Cross Wire Dia (mm) | Line Wire # | Cross Wire # | Line Wire Pitch (mm) | Cross Wire Pitch (mm) | Length (mm) | Width (mm) | Sheet Area (m²) | Edge Wires | Sheet Weight (kg) | Weight per m² (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SL52 | 4.77 | 4.77 | 10 | 30 | 200 | 200 | 6000 | 2400 | 14.40 | - | 20 | 1.400 |
| SL62 | 6.00 | 6.00 | 10 | 30 | 200 | 200 | 6000 | 2400 | 14.40 | 4×4.24 @ 100 | 33 | 2.292 |
| SL72 | 6.75 | 6.75 | 10 | 30 | 200 | 200 | 6000 | 2400 | 14.40 | 4×4.77 @ 100 | 41 | 2.778 |
| SL81 | 7.60 | 7.60 | 25 | 60 | 100 | 200 | 6000 | 2400 | 14.40 | - | 105 | 7.100 |
| SL82 | 7.60 | 7.60 | 10 | 30 | 200 | 200 | 6000 | 2400 | 14.40 | 4×5.37 @ 100 | 52 | 3.611 |
| SL92 | 8.60 | 8.60 | 10 | 30 | 200 | 200 | 6000 | 2400 | 14.40 | 4×6.00 @ 100 | 66 | 4.514 |
| SL102 | 9.50 | 9.50 | 10 | 30 | 200 | 200 | 6000 | 2400 | 14.40 | 4×6.75 @ 100 | 80 | 5.556 |
| SL63 | 6.00 | 6.00 | 6 | 30 | 300 | 300 | 6000 | 2300 | 13.80 | 4×4.00 @ 100 | 21 | 1.594 |
| SL53 | 4.77 | 4.77 | 6 | 20 | 300 | 300 | 6000 | 2300 | 13.80 | 4×4.00 @ 100 | 15 | 1.000 |
Rectangular Mesh
| Ref No. | Line Wire Dia (mm) | Cross Wire Dia (mm) | Line Wire # | Cross Wire # | Line Wire Pitch (mm) | Cross Wire Pitch (mm) | Length (mm) | Width (mm) | Sheet Area (m²) | Edge Wires | Sheet Weight (kg) | Weight per m² (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RL718 | 6.75 | 7.60 | 25 | 30 | 100 | 200 | 6000 | 2400 | 14.40 | - | 67 | 4.600 |
| RL818 | 7.60 | 7.60 | 25 | 30 | 100 | 200 | 6000 | 2400 | 14.40 | - | 79 | 5.300 |
| RL918 | 8.60 | 7.60 | 25 | 30 | 100 | 200 | 6000 | 2400 | 14.40 | - | 93 | 6.300 |
| RL1018 | 9.50 | 7.60 | 25 | 30 | 100 | 200 | 6000 | 2400 | 14.40 | - | 109 | 7.300 |
| RL1118 | 10.70 | 7.60 | 25 | 30 | 100 | 200 | 6000 | 2400 | 14.40 | - | 130 | 8.800 |
| RL1218 | 11.90 | 7.60 | 25 | 30 | 100 | 200 | 6000 | 2400 | 14.40 | - | 157 | 10.500 |
Trench Mesh
| Ref No. | Line Wire Dia (mm) | Cross Wire Dia (mm) | Line Wire # | Cross Wire # | Line Wire Pitch (mm) | Cross Wire Pitch (mm) | Length (mm) | Width (mm) | Sheet Area (m²) | Edge Wires | Sheet Weight (kg) | Weight per m² (kg) |
| L8TM200 | 8 | 4 | - | - | 100 | 300 | 6000 | 200 | - | - | 6 | 5 |
| L8TM300 | 8 | 4 | - | - | 100 | 300 | 6000 | 300 | - | - | 9 | 5 |
| L8TM400 | 8 | 4 | - | - | 100 | 300 | 6000 | 400 | - | - | 11 | 4.58 |
| L8TM500 | 8 | 4 | - | - | 100 | 300 | 6000 | 500 | - | - | 14 | 4.67 |
| L8TM600 | 8 | 4 | - | - | 100 | 300 | 6000 | 600 | - | - | 16 | 4.44 |
| L8TM2400 | 8 | 4 | - | - | 100 | 300 | 6000 | 2300 | - | - | 64 | 4.64 |
| L11TM200 | 11.2 | 5 | - | - | 100 | 300 | 6000 | 200 | - | - | 13 | 10.83 |
| L11TM300 | 11.2 | 5 | - | - | 100 | 300 | 6000 | 300 | - | - | 18 | 10 |
| L11TM2400 | 11.2 | 5 | - | - | 100 | 300 | 6000 | 2300 | - | - | 123 | 8.91 |
| L12TM200 | 12.2 | 5 | 3,4 or 5 | - | 100 | 300 | 6000 | 200 | - | - | 16 | 13.333 |
| L12TM300 | 12.2 | 5 | 3,4 or 5 | - | 100 | 300 | 6000 | 300 | - | - | 22 | 12.222 |
| L12TM2400 | 12.2 | 5 | 3,4 or 5 | - | 100 | 300 | 6000 | 2300 | - | - | 96 | 6.956 |
| Note: Due to container loading restrictions during transportation, the standard length is 6 meters, but the actual production length is usually ≤ 5.8 meters. | ||||||||||||
3.German Size (DIN 488):
Square Mesh
| Ref No. | Line Wire Pitch (mm) | Cross Wire Pitch (mm) | Line Wire Dia (mm) | Cross Wire Dia (mm) | Line Wire Area (mm²/m) | Cross Wire Area (mm²/m) | Length (mm) | Width (mm) | Area of Mesh (m²/m) | Mass (kg/m²) | Weight of Mesh (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Q131 | 150 | 150 | 5.0 | 5.0 | 131 | 131 | 5000 | 2150 | 10.75 | 2.091 | 22.476 |
| Q188 | 150 | 150 | 6.0 | 6.0 | 188 | 188 | 5000 | 2150 | 10.75 | 3.014 | 32.401 |
| Q221 | 150 | 150 | 6.5/5 | 6.5 | 221 | 221 | 5000 | 2150 | 10.75 | 3.136 | 33.707 |
| Q295 | 150 | 150 | 7.5/5.5 | 7.5 | 295 | 295 | 5000 | 2150 | 10.75 | 4.116 | 44.245 |
| Q378 | 150 | 150 | 8.5/6 | 8.5 | 378 | 378 | 6000 | 2150 | 12.90 | 5.167 | 66.659 |
| Q443 | 150 | 100 | 6.5d/6.5 | 7.5 | 443 | 442 | 6000 | 2150 | 12.90 | 6.073 | 78.337 |
| Q513 | 150 | 100 | 7d/7 | 8.0 | 513 | 503 | 6000 | 2150 | 12.90 | 6.974 | 89.970 |
| Q670 | 150 | 100 | 8d/8 | 9.0 | 670 | 636 | 6000 | 2150 | 12.90 | 8.949 | 115.438 |
Rectangular Mesh
| Ref No. | Line Wire Pitch (mm) | Cross Wire Pitch (mm) | Line Wire Dia (mm) | Cross Wire Dia (mm) | Line Wire Area (mm²/m) | Cross Wire Area (mm²/m) | Length (mm) | Width (mm) | Area of Mesh (m²/m) | Mass (kg/m²) | Weight of Mesh (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| R378 | 150 | 250 | 8.5/6 | 5.0 | 378 | 78 | 6000 | 2150 | 12.90 | 3.306 | 42.644 |
| R443 | 150 | 250 | 6.5d/6.5 | 5.5 | 443 | 95 | 6000 | 2150 | 12.90 | 3.892 | 50.209 |
| R513 | 150 | 250 | 7d/7 | 6.0 | 513 | 113 | 6000 | 2150 | 12.90 | 4.540 | 58.576 |
4.French Size (NFA 35-016):
| Ref No. | Line Wire Dia (mm) | Cross Wire Dia (mm) | Line Wire Pitch (mm) | Cross Wire Pitch (mm) | Length (mm) | Width (mm) | Sheet Area (m²) | Line Wire Area (mm²/m) | Cross Wire Area (mm²/m) | Sheet Weight (kg) | Weight per m² (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PPAF R | 4.5 | 4.5 | 300 | 300 | 3600 | 2400 | 8.64 | 53 | 53 | 9.000 | 1.042 |
| PPAF C | 4.5 | 4.5 | 200 | 200 | 3600 | 2400 | 8.64 | 80 | 80 | 10.800 | 1.250 |
| PPAF V | 4.5 | 4.4 | 200 | 160 | 3200 | 2400 | 7.68 | 80 | 99 | 9.600 | 1.250 |
| PST 10 | 5.5 | 5.5 | 200 | 200 | 4800 | 2400 | 11.52 | 119 | 119 | 21.540 | 1.870 |
| PST 20 | 6.0 | 7.0 | 150 | 300 | 6000 | 2400 | 14.40 | 188 | 128 | 35.808 | 2.487 |
| PST 25 | 7.0 | 7.0 | 100 | 300 | 6000 | 2400 | 14.40 | 257 | 128 | 43.488 | 3.020 |
| PST 30 | 6.0 | 7.0 | 100 | 300 | 6000 | 2400 | 14.40 | 257 | 128 | 46.464 | 3.227 |
| PST 35 | 7.0 | 7.0 | 100 | 300 | 6000 | 2400 | 14.40 | 385 | 128 | 57.984 | 4.027 |
| PST 45 | 9.0 | 8.0 | 150 | 300 | 6000 | 2400 | 14.40 | 503 | 168 | 66.864 | 4.643 |
| PST 50 | 8.0 | 8.0 | 100 | 300 | 6000 | 2400 | 14.40 | 503 | 168 | 75.840 | 5.267 |
| PST 60 | 9.0 | 8.0 | 100 | 200 | 6000 | 2400 | 14.40 | 636 | 251 | 100.296 | 6.965 |
| PST 25C | 7.0 | 7.0 | 150 | 150 | 6000 | 2400 | 14.40 | 257 | 257 | 57.984 | 4.027 |
| PST 40C | 7.0 | 7.0 | 100 | 100 | 6000 | 2400 | 14.40 | 385 | 385 | 86.976 | 6.040 |
| PST 65C | 9.0 | 9.0 | 100 | 100 | 6000 | 2400 | 14.40 | 636 | 636 | 143.712 | 9.980 |

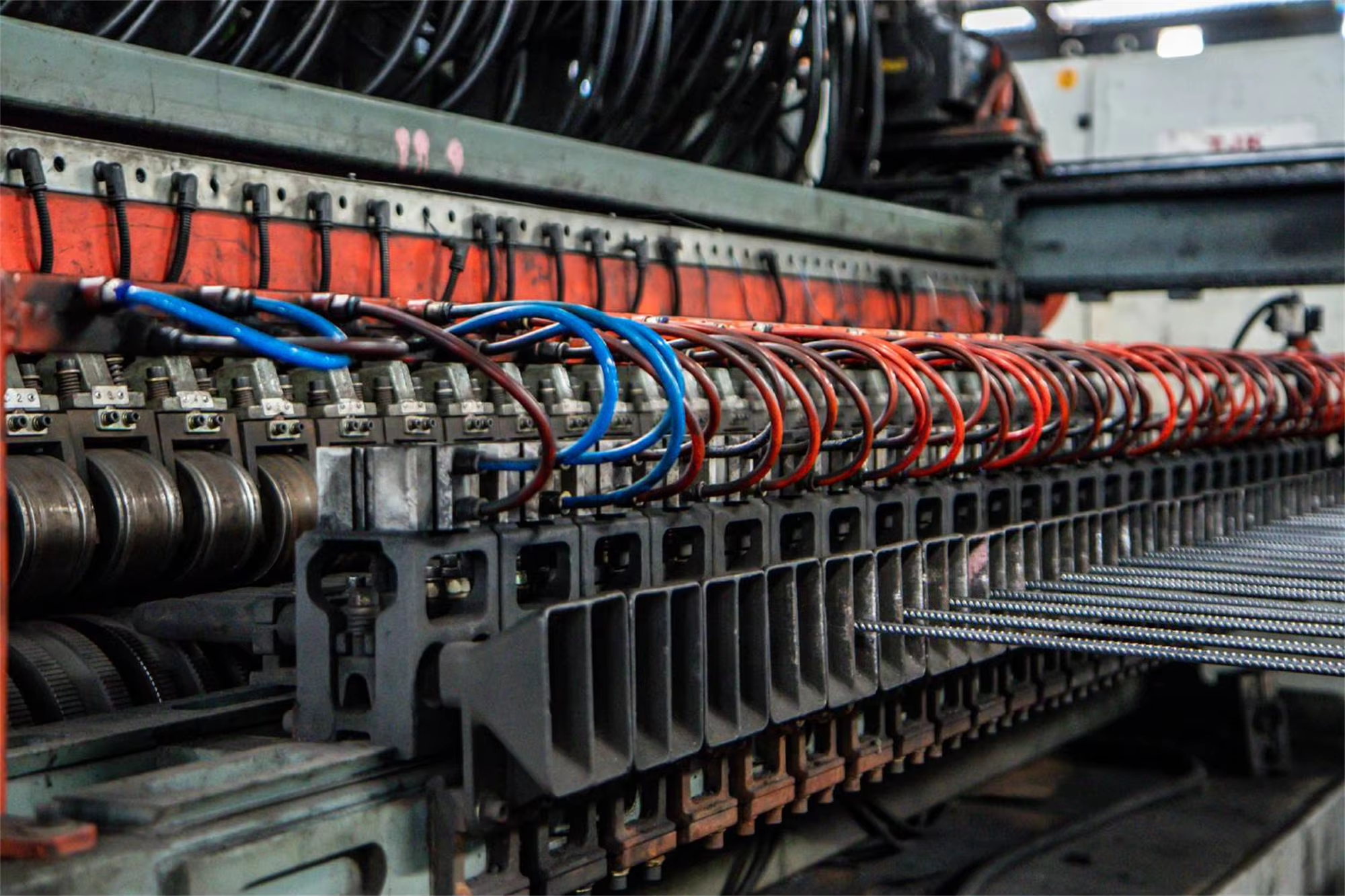

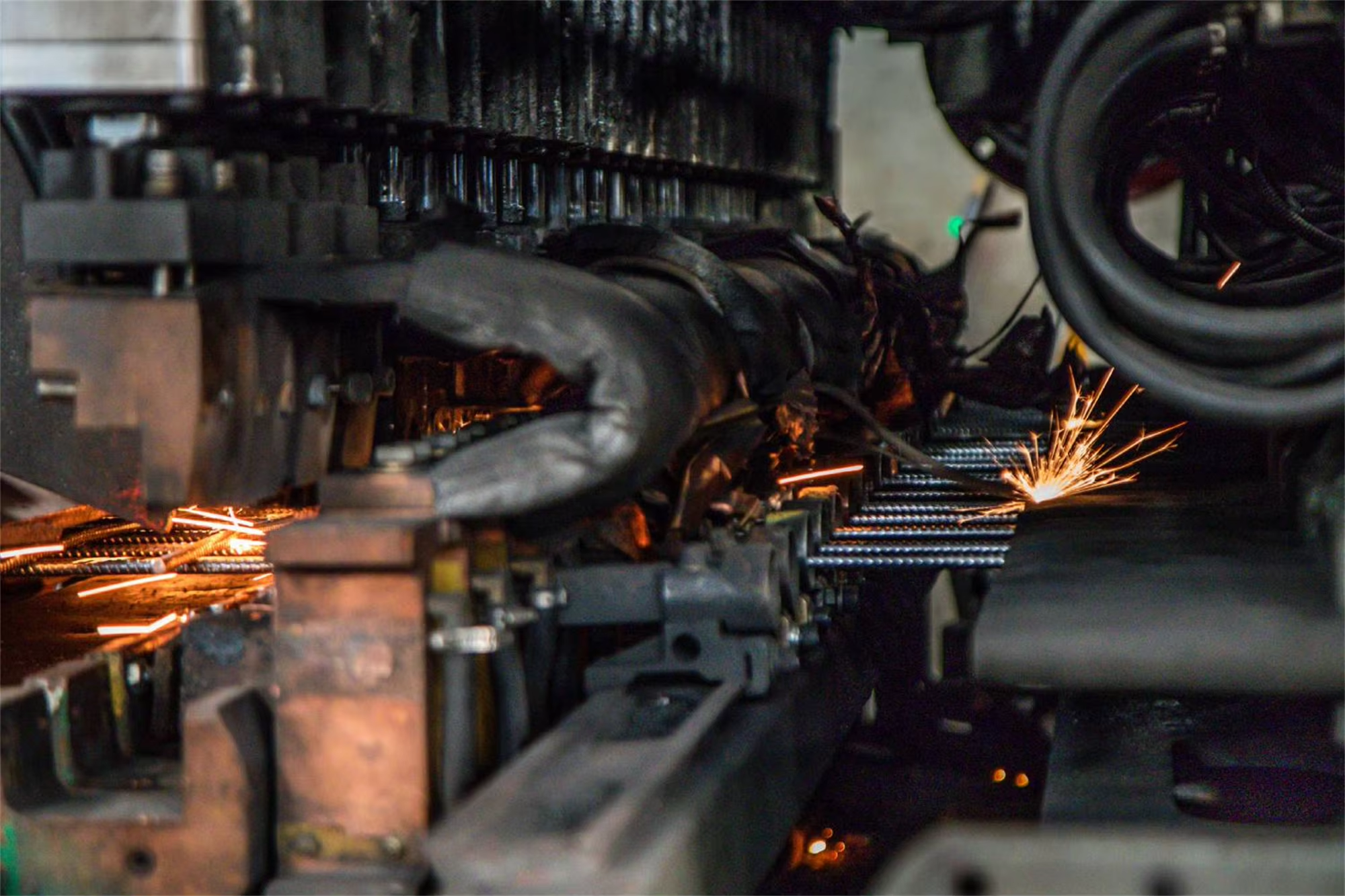

Production：

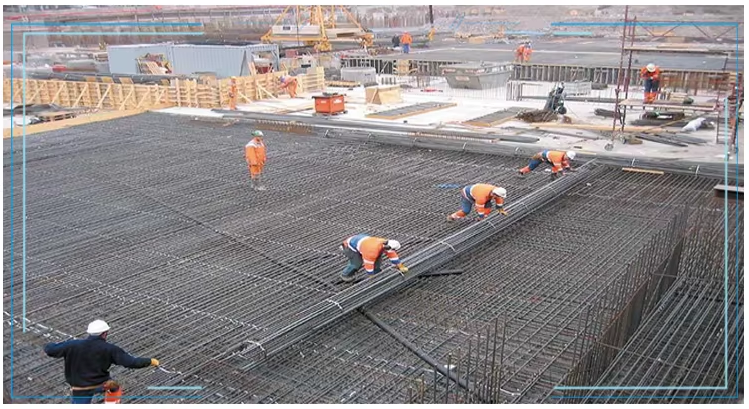

Application：
Concrete reinforcing mesh is a kind of Welded Wire Reinforcing Mesh, so it's also called reinforcing welded mesh.
It's made of carbon steel or stainless steel, including rectangular reinforcing mesh, square reinforcing mesh, and trench mesh. With high strength and firm structure, the concrete reinforcing mesh can greatly improve the bonding to concrete and minimize the concrete cracking. It's extensively used for reinforcement of building foundations, road surfaces, and bridge decks. Besides, the reinforcing bar supports and tie wires are also important and necessary to secure the reinforcing mesh in the concrete structures.
| Specifications and Technical Indicators | ||||
| Rebar level | Specifications | Tensile Strength (N/mm²) | Elongation (δ10, δ100) | Cold Bend 180 (D = Bending core diameter) |
| CRB550 | φR4mm - φR12mm | ≥550 | ≥8 | D = 3d |
| CRB650 | φR5mm | ≥650 | ≥4 | D = 4d |
| CRB800 | φR5mm | ≥800 | ≥4 | D = 5d |
Types of Reinforcing Mesh:
① Square Reinforcing Mesh
The square reinforcing mesh is a universal galvanized grid plate, which ismanufactured of high-quality ribbed steel rebars and is used for flat concretereinforcement.The L-grade ribbed steel rebars are welded together at equalintervals to form a square hole pattern.Ribbed square reinforcing mesh is a multifunctional reinforcing fabric used inmodern concrete structures, Widely used in reinforced concrete slabs fordriveways, patios, pavement areas, sheds, precast panels, and other flatconcrete elements
②Rectangular Reinforcing Mesh
Rectangular reinforcing mesh is also manufactured from Lgrade ribbed rebars(D500L) that are welded together with different spacing in each direction toform a rectangular grid.This mesh is used for reinforcing thin concrete elements such as floor slabs andwalls,patios, tilt-up slabs, and other industrial or warehouse applications,where more strength is required in one direction than the other.
③Trench reinforcing mesh
Trench reinforcing mesh sheets are manufactured for the purpose ofresidential footing trenches and/or industrial building concrete footing andbeam reinforcement.Trench mesh common uses include rock walls,brick walls and house footingsand used specifically for residential footing trenches.
Welded wire mesh is mainly distinguished based on the chemical composition of the steel, tensile strength, yield strength, elongation requirements, and wire diameter requirements.We can provide reinforced concrete mesh according to the standards of the following countries.
1. BS 4483:2005:
Square Mesh Fabric 200mm × 200mm
| BS Ref No. | Line Wire Pitch (mm) | Cross Wire Pitch (mm) | Line Wire Dia (mm) | Cross Wire Dia (mm) | Line Wire Area (mm²/m) | Cross Wire Area (mm²/m) | Mass (kg/m²) | Sheets per Ton |
|---|---|---|---|---|---|---|---|---|
| A393 | 200 | 200 | 10 | 10 | 393 | 393 | 6.16 | 15 |
| A252 | 200 | 200 | 8 | 8 | 252 | 252 | 3.95 | 22 |
| A193 | 200 | 200 | 7 | 7 | 193 | 193 | 3.02 | 29 |
| A142 | 200 | 200 | 6 | 6 | 142 | 142 | 2.22 | 40 |
| A98 | 200 | 200 | 5 | 5 | 98 | 98 | 1.54 | 57 |
Structural Mesh Fabric 100mm × 200mm
| BS Ref No. | Line Wire Pitch (mm) | Cross Wire Pitch (mm) | Line Wire Dia (mm) | Cross Wire Dia (mm) | Line Wire Area (mm²/m) | Cross Wire Area (mm²/m) | Mass (kg/m²) | Sheets per Ton |
|---|---|---|---|---|---|---|---|---|
| B1131 | 100 | 200 | 12 | 8 | 1131 | 252 | 10.90 | 8 |
| B785 | 100 | 200 | 10 | 8 | 785 | 252 | 8.14 | 11 |
| B503 | 100 | 200 | 8 | 8 | 503 | 252 | 5.93 | 15 |
| B385 | 100 | 200 | 7 | 7 | 385 | 193 | 4.53 | 20 |
| B283 | 100 | 200 | 6 | 7 | 283 | 193 | 3.73 | 24 |
| B196 | 100 | 200 | 5 | 7 | 196 | 193 | 3.05 | 29 |
Long Mesh Fabric 100mm × 400mm
| BS Ref No. | Line Wire Pitch (mm) | Cross Wire Pitch (mm) | Line Wire Dia (mm) | Cross Wire Dia (mm) | Line Wire Area (mm²/m) | Cross Wire Area (mm²/m) | Mass (kg/m²) | Sheets per Ton |
|---|---|---|---|---|---|---|---|---|
| C785 | 100 | 400 | 10 | 6 | 785 | 70.8 | 6.72 | 13 |
| C636 | 100 | 400 | 9 | 6 | 636 | 70.8 | 5.55 | 16 |
| C503 | 100 | 400 | 8 | 5 | 503 | 49.0 | 4.34 | 21 |
| C385 | 100 | 400 | 7 | 5 | 386 | 49.0 | 3.41 | 26 |
| C283 | 100 | 400 | 6 | 5 | 283 | 49.0 | 2.61 | 34 |
Wrapping Mesh
| BS Ref No. | Line Wire Pitch (mm) | Cross Wire Pitch (mm) | Line Wire Dia (mm) | Cross Wire Dia (mm) | Line Wire Area (mm²/m) | Cross Wire Area (mm²/m) | Mass (kg/m²) | Sheets per Ton |
|---|---|---|---|---|---|---|---|---|
| D98 | 200 | 200 | 5 | 5 | 98 | 98 | 1.54 | 57 |
| D49 | 100 | 100 | 2.5 | 2.5 | 49 | 49 | 0.77 | 113 |
2.Australia/New Zeland AS/NZS 4671: 2001:
Square Mesh
| Ref No. | Line Wire Dia (mm) | Cross Wire Dia (mm) | Line Wire # | Cross Wire # | Line Wire Pitch (mm) | Cross Wire Pitch (mm) | Length (mm) | Width (mm) | Sheet Area (m²) | Edge Wires | Sheet Weight (kg) | Weight per m² (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SL52 | 4.77 | 4.77 | 10 | 30 | 200 | 200 | 6000 | 2400 | 14.40 | - | 20 | 1.400 |
| SL62 | 6.00 | 6.00 | 10 | 30 | 200 | 200 | 6000 | 2400 | 14.40 | 4×4.24 @ 100 | 33 | 2.292 |
| SL72 | 6.75 | 6.75 | 10 | 30 | 200 | 200 | 6000 | 2400 | 14.40 | 4×4.77 @ 100 | 41 | 2.778 |
| SL81 | 7.60 | 7.60 | 25 | 60 | 100 | 200 | 6000 | 2400 | 14.40 | - | 105 | 7.100 |
| SL82 | 7.60 | 7.60 | 10 | 30 | 200 | 200 | 6000 | 2400 | 14.40 | 4×5.37 @ 100 | 52 | 3.611 |
| SL92 | 8.60 | 8.60 | 10 | 30 | 200 | 200 | 6000 | 2400 | 14.40 | 4×6.00 @ 100 | 66 | 4.514 |
| SL102 | 9.50 | 9.50 | 10 | 30 | 200 | 200 | 6000 | 2400 | 14.40 | 4×6.75 @ 100 | 80 | 5.556 |
| SL63 | 6.00 | 6.00 | 6 | 30 | 300 | 300 | 6000 | 2300 | 13.80 | 4×4.00 @ 100 | 21 | 1.594 |
| SL53 | 4.77 | 4.77 | 6 | 20 | 300 | 300 | 6000 | 2300 | 13.80 | 4×4.00 @ 100 | 15 | 1.000 |
Rectangular Mesh
| Ref No. | Line Wire Dia (mm) | Cross Wire Dia (mm) | Line Wire # | Cross Wire # | Line Wire Pitch (mm) | Cross Wire Pitch (mm) | Length (mm) | Width (mm) | Sheet Area (m²) | Edge Wires | Sheet Weight (kg) | Weight per m² (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RL718 | 6.75 | 7.60 | 25 | 30 | 100 | 200 | 6000 | 2400 | 14.40 | - | 67 | 4.600 |
| RL818 | 7.60 | 7.60 | 25 | 30 | 100 | 200 | 6000 | 2400 | 14.40 | - | 79 | 5.300 |
| RL918 | 8.60 | 7.60 | 25 | 30 | 100 | 200 | 6000 | 2400 | 14.40 | - | 93 | 6.300 |
| RL1018 | 9.50 | 7.60 | 25 | 30 | 100 | 200 | 6000 | 2400 | 14.40 | - | 109 | 7.300 |
| RL1118 | 10.70 | 7.60 | 25 | 30 | 100 | 200 | 6000 | 2400 | 14.40 | - | 130 | 8.800 |
| RL1218 | 11.90 | 7.60 | 25 | 30 | 100 | 200 | 6000 | 2400 | 14.40 | - | 157 | 10.500 |
Trench Mesh
| Ref No. | Line Wire Dia (mm) | Cross Wire Dia (mm) | Line Wire # | Cross Wire # | Line Wire Pitch (mm) | Cross Wire Pitch (mm) | Length (mm) | Width (mm) | Sheet Area (m²) | Edge Wires | Sheet Weight (kg) | Weight per m² (kg) |
| L8TM200 | 8 | 4 | - | - | 100 | 300 | 6000 | 200 | - | - | 6 | 5 |
| L8TM300 | 8 | 4 | - | - | 100 | 300 | 6000 | 300 | - | - | 9 | 5 |
| L8TM400 | 8 | 4 | - | - | 100 | 300 | 6000 | 400 | - | - | 11 | 4.58 |
| L8TM500 | 8 | 4 | - | - | 100 | 300 | 6000 | 500 | - | - | 14 | 4.67 |
| L8TM600 | 8 | 4 | - | - | 100 | 300 | 6000 | 600 | - | - | 16 | 4.44 |
| L8TM2400 | 8 | 4 | - | - | 100 | 300 | 6000 | 2300 | - | - | 64 | 4.64 |
| L11TM200 | 11.2 | 5 | - | - | 100 | 300 | 6000 | 200 | - | - | 13 | 10.83 |
| L11TM300 | 11.2 | 5 | - | - | 100 | 300 | 6000 | 300 | - | - | 18 | 10 |
| L11TM2400 | 11.2 | 5 | - | - | 100 | 300 | 6000 | 2300 | - | - | 123 | 8.91 |
| L12TM200 | 12.2 | 5 | 3,4 or 5 | - | 100 | 300 | 6000 | 200 | - | - | 16 | 13.333 |
| L12TM300 | 12.2 | 5 | 3,4 or 5 | - | 100 | 300 | 6000 | 300 | - | - | 22 | 12.222 |
| L12TM2400 | 12.2 | 5 | 3,4 or 5 | - | 100 | 300 | 6000 | 2300 | - | - | 96 | 6.956 |
| Note: Due to container loading restrictions during transportation, the standard length is 6 meters, but the actual production length is usually ≤ 5.8 meters. | ||||||||||||
3.German Size (DIN 488):
Square Mesh
| Ref No. | Line Wire Pitch (mm) | Cross Wire Pitch (mm) | Line Wire Dia (mm) | Cross Wire Dia (mm) | Line Wire Area (mm²/m) | Cross Wire Area (mm²/m) | Length (mm) | Width (mm) | Area of Mesh (m²/m) | Mass (kg/m²) | Weight of Mesh (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Q131 | 150 | 150 | 5.0 | 5.0 | 131 | 131 | 5000 | 2150 | 10.75 | 2.091 | 22.476 |
| Q188 | 150 | 150 | 6.0 | 6.0 | 188 | 188 | 5000 | 2150 | 10.75 | 3.014 | 32.401 |
| Q221 | 150 | 150 | 6.5/5 | 6.5 | 221 | 221 | 5000 | 2150 | 10.75 | 3.136 | 33.707 |
| Q295 | 150 | 150 | 7.5/5.5 | 7.5 | 295 | 295 | 5000 | 2150 | 10.75 | 4.116 | 44.245 |
| Q378 | 150 | 150 | 8.5/6 | 8.5 | 378 | 378 | 6000 | 2150 | 12.90 | 5.167 | 66.659 |
| Q443 | 150 | 100 | 6.5d/6.5 | 7.5 | 443 | 442 | 6000 | 2150 | 12.90 | 6.073 | 78.337 |
| Q513 | 150 | 100 | 7d/7 | 8.0 | 513 | 503 | 6000 | 2150 | 12.90 | 6.974 | 89.970 |
| Q670 | 150 | 100 | 8d/8 | 9.0 | 670 | 636 | 6000 | 2150 | 12.90 | 8.949 | 115.438 |

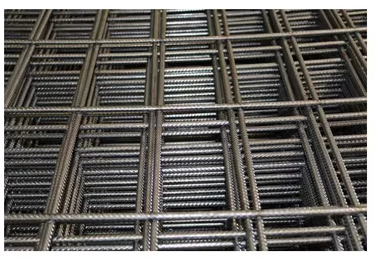

Rectangular Mesh
| Ref No. | Line Wire Pitch (mm) | Cross Wire Pitch (mm) | Line Wire Dia (mm) | Cross Wire Dia (mm) | Line Wire Area (mm²/m) | Cross Wire Area (mm²/m) | Length (mm) | Width (mm) | Area of Mesh (m²/m) | Mass (kg/m²) | Weight of Mesh (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| R378 | 150 | 250 | 8.5/6 | 5.0 | 378 | 78 | 6000 | 2150 | 12.90 | 3.306 | 42.644 |
| R443 | 150 | 250 | 6.5d/6.5 | 5.5 | 443 | 95 | 6000 | 2150 | 12.90 | 3.892 | 50.209 |
| R513 | 150 | 250 | 7d/7 | 6.0 | 513 | 113 | 6000 | 2150 | 12.90 | 4.540 | 58.576 |
4.French Size (NFA 35-016):
| Ref No. | Line Wire Dia (mm) | Cross Wire Dia (mm) | Line Wire Pitch (mm) | Cross Wire Pitch (mm) | Length (mm) | Width (mm) | Sheet Area (m²) | Line Wire Area (mm²/m) | Cross Wire Area (mm²/m) | Sheet Weight (kg) | Weight per m² (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PPAF R | 4.5 | 4.5 | 300 | 300 | 3600 | 2400 | 8.64 | 53 | 53 | 9.000 | 1.042 |
| PPAF C | 4.5 | 4.5 | 200 | 200 | 3600 | 2400 | 8.64 | 80 | 80 | 10.800 | 1.250 |
| PPAF V | 4.5 | 4.4 | 200 | 160 | 3200 | 2400 | 7.68 | 80 | 99 | 9.600 | 1.250 |
| PST 10 | 5.5 | 5.5 | 200 | 200 | 4800 | 2400 | 11.52 | 119 | 119 | 21.540 | 1.870 |
| PST 20 | 6.0 | 7.0 | 150 | 300 | 6000 | 2400 | 14.40 | 188 | 128 | 35.808 | 2.487 |
| PST 25 | 7.0 | 7.0 | 100 | 300 | 6000 | 2400 | 14.40 | 257 | 128 | 43.488 | 3.020 |
| PST 30 | 6.0 | 7.0 | 100 | 300 | 6000 | 2400 | 14.40 | 257 | 128 | 46.464 | 3.227 |
| PST 35 | 7.0 | 7.0 | 100 | 300 | 6000 | 2400 | 14.40 | 385 | 128 | 57.984 | 4.027 |
| PST 45 | 9.0 | 8.0 | 150 | 300 | 6000 | 2400 | 14.40 | 503 | 168 | 66.864 | 4.643 |
| PST 50 | 8.0 | 8.0 | 100 | 300 | 6000 | 2400 | 14.40 | 503 | 168 | 75.840 | 5.267 |
| PST 60 | 9.0 | 8.0 | 100 | 200 | 6000 | 2400 | 14.40 | 636 | 251 | 100.296 | 6.965 |
| PST 25C | 7.0 | 7.0 | 150 | 150 | 6000 | 2400 | 14.40 | 257 | 257 | 57.984 | 4.027 |
| PST 40C | 7.0 | 7.0 | 100 | 100 | 6000 | 2400 | 14.40 | 385 | 385 | 86.976 | 6.040 |
| PST 65C | 9.0 | 9.0 | 100 | 100 | 6000 | 2400 | 14.40 | 636 | 636 | 143.712 | 9.980 |
Production：
Application：
