In addition to 358 Mesh Fencing、Ornamental Fence, we also offer another type of high-security Intrusion-resistant fencing—a combination of razor wire and welded wire, or chain link fencing. High-security Intrusion-resistant fencing is an ideal anti-climb option for protecting racetracks, racetracks, airports, industrial sites, government and military facilities, and some railway facilities. It effectively protects these areas from vandals and intruders.
We mainly provide the following two types of combined high security fences, as shown below:

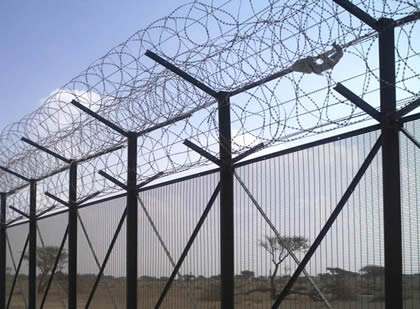

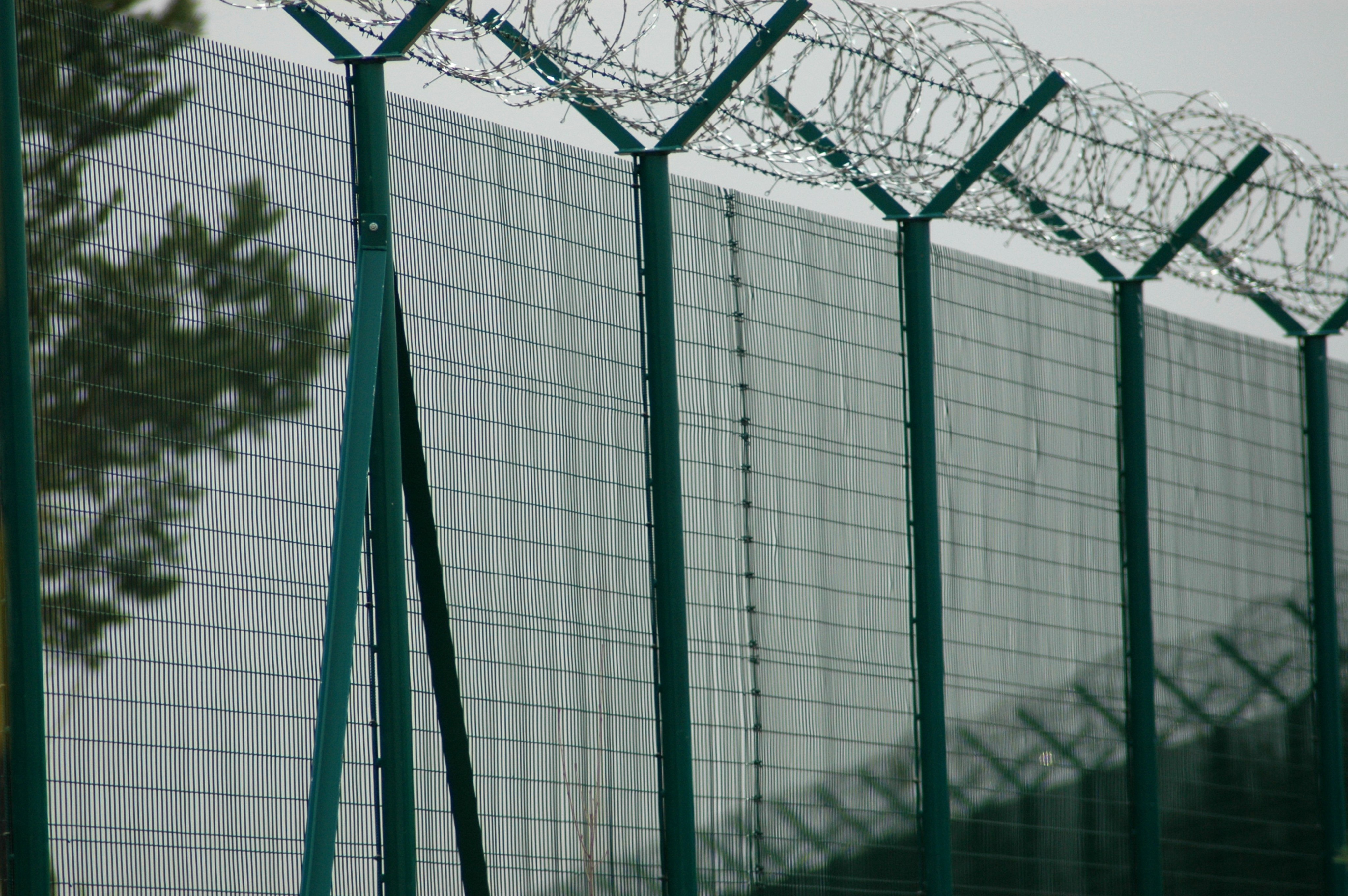

Razor wire mounted on welded wire mesh panels
◆Material: Mild steel wire.
◆Wire coating (conforming to BS EN 10223-6): Galvanized wire, zinc alloy wire, plastic-coated wire.
◆Wire diameter (mm): 3.00
◆Mesh size (mm): 50 mm x 50 mm or 75 mm x 25 mm vertically.
◆Fence panel height (m): 2.4, 2.7 (0.3 m buried).
◆Panel width: 2000 mm, 2500 mm.
◆Colors: Green, black, blue, white. All RAL colors are available.
◆Accessories: Steel posts, stanchions, ties, gates, extension arms, wire mesh, base plates, stretcher bars (clamping bars), stainless steel clamps, bolts, nuts, and washers.

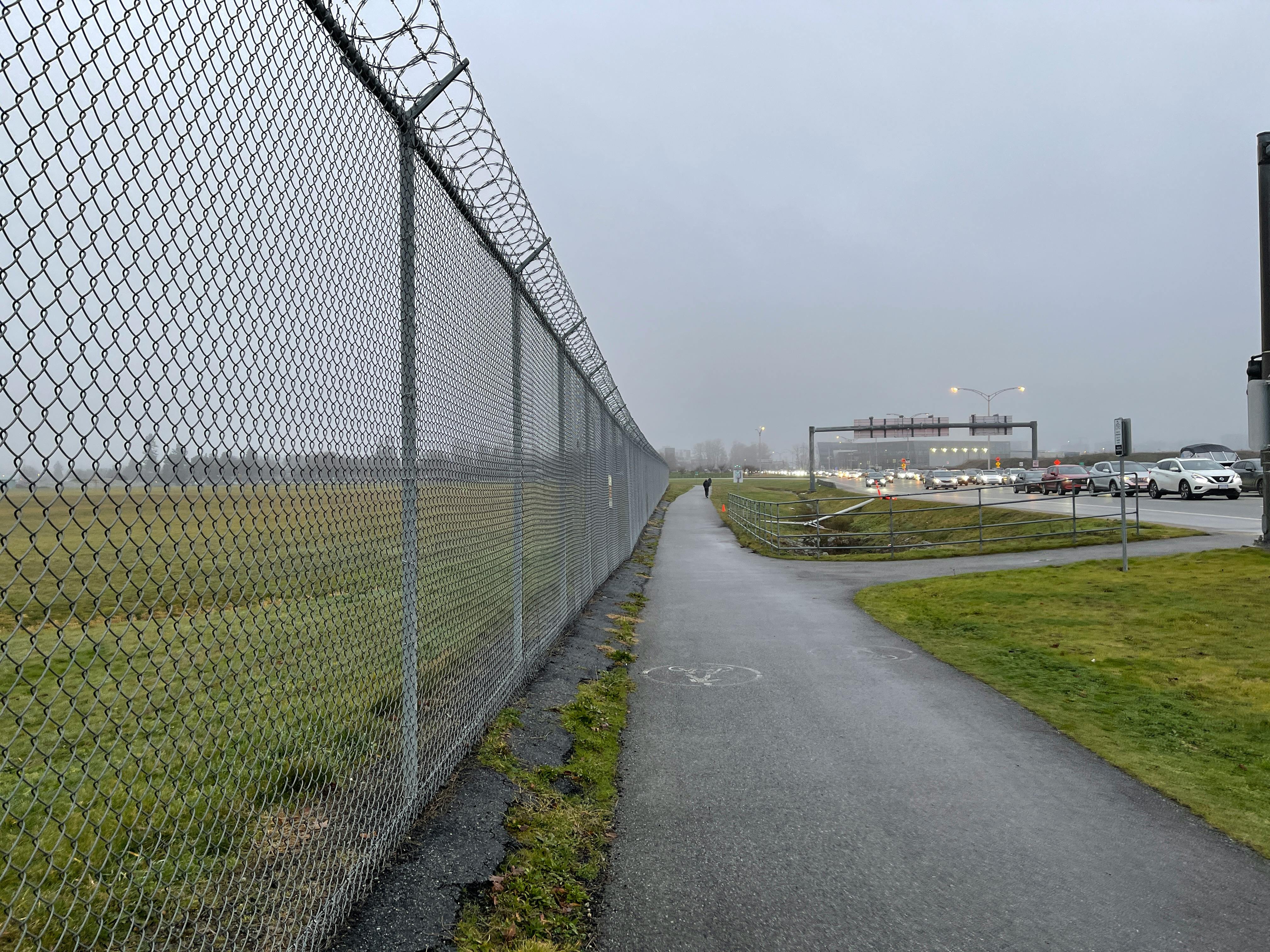

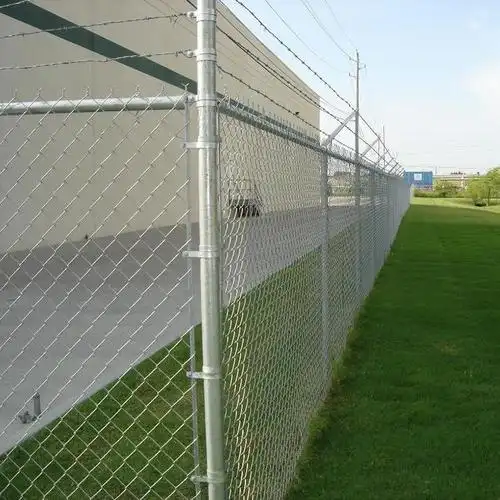

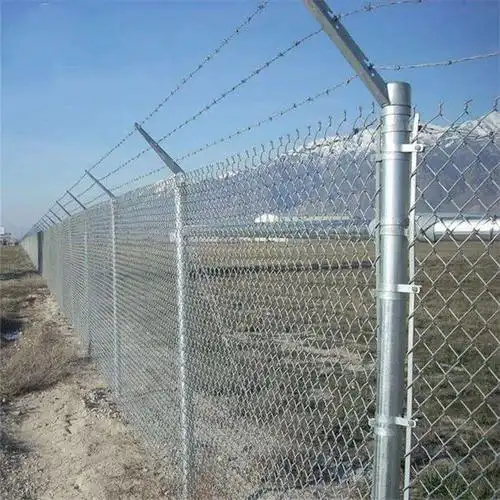

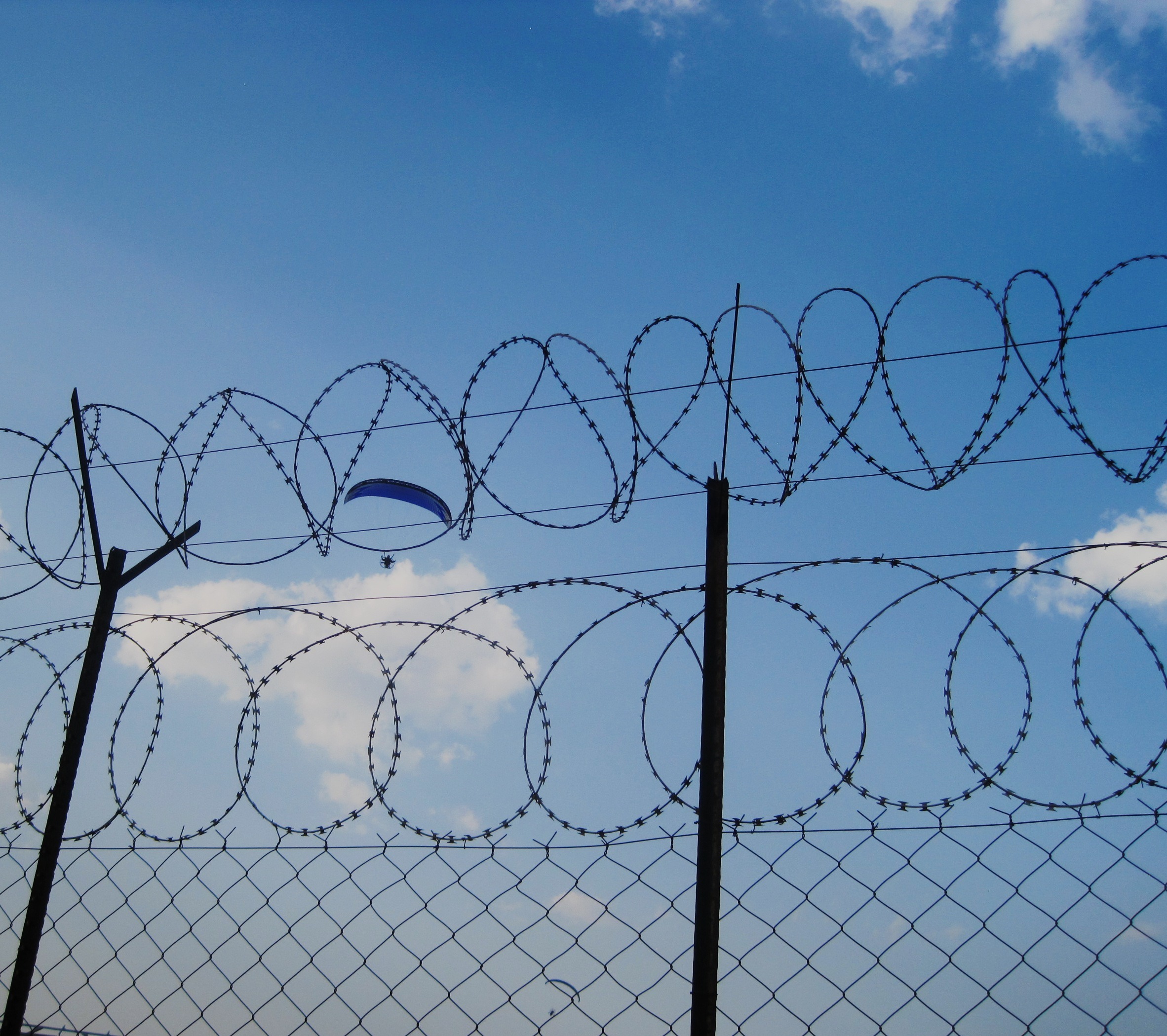

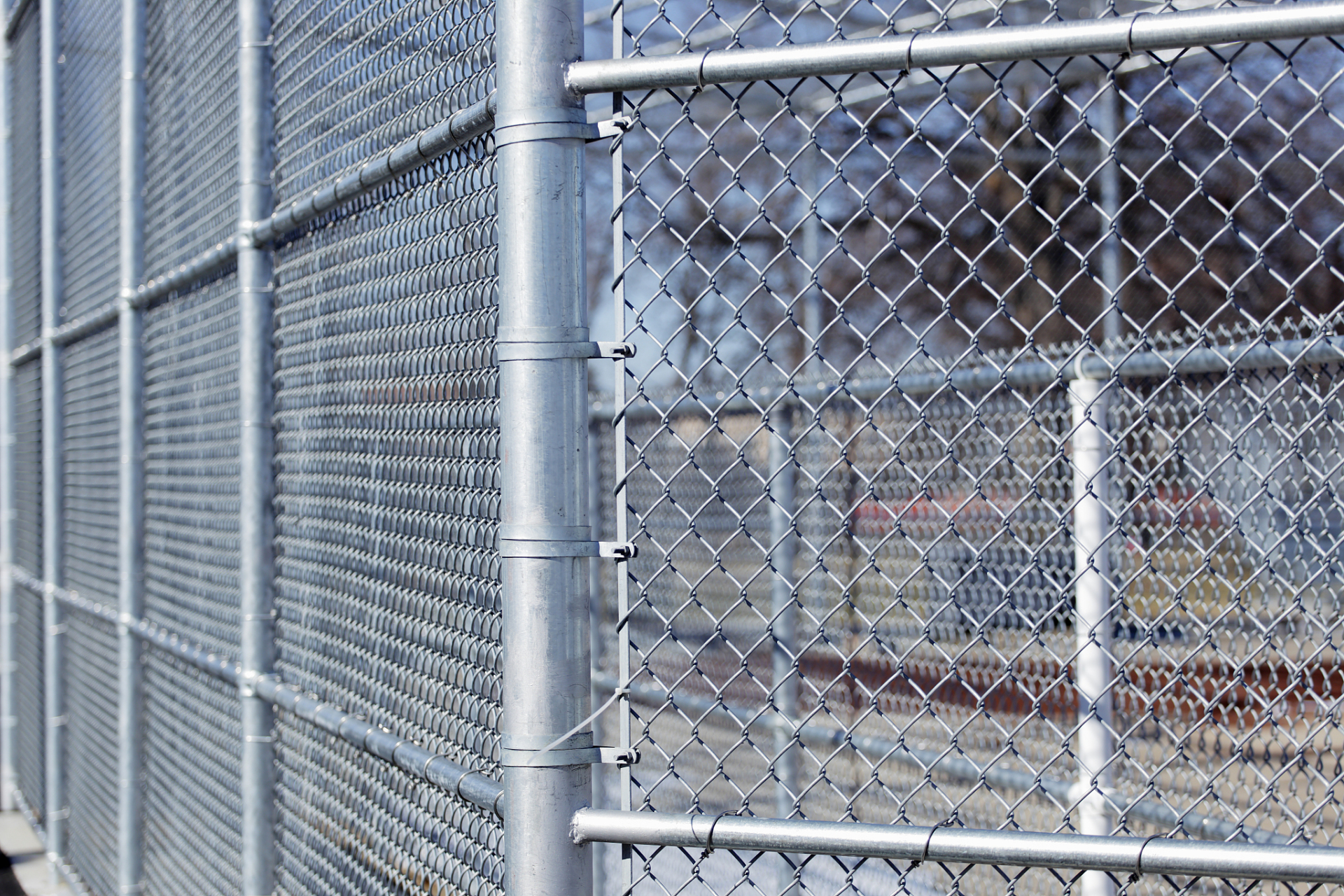

Razor wire mounted on a chain link fence.
Our anti-intrusion chain-link fence panels are made from mild steel wire with mesh widths of 40mm or 50mm. The width should be 2.4m for non-in-ground installations and 2.7m for in-ground installations. Chain-link panels are connected in a spiral pattern and reinforced with knots or barbs.

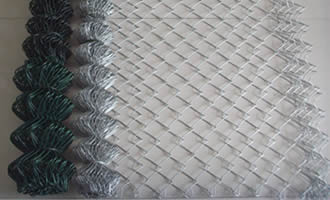

●Fence Wire
Material: Galvanized wire or PVC-coated wire.
Edge Type: Twisted or knuckle-edged.
Wire Diameter: 1.2–5.0 mm.
Mesh Size: 20 mm × 20 mm to 50 mm × 50 mm.
Fence Height: 0.5–3.0 meters.
Zinc Content: 60–90 g/m².
Roll Length: 10–50 meters.

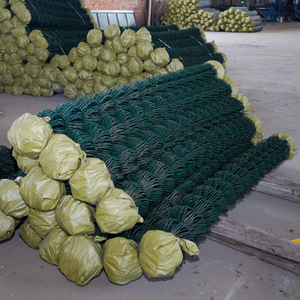

Packaging: Rolls are wrapped in paper or plastic film and cross-strapped.

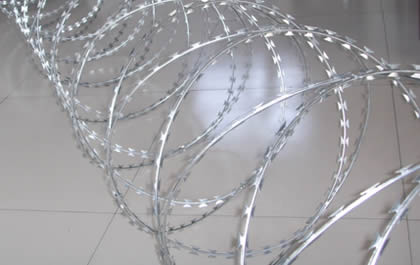

●Razor Wire
Razor wire can be either concertina coil or straight.
Material: Galvanized wire and galvanized sheet metal.
Razor barb types: BTO-10, BTO-12, BTO-15, BTO-18, BTO-22, BTO-25, BTO-28, BTO-30, CBT-60, CBT-65.
Razor barb diameters: 450, 500, 600, 700, 800, 900, 960, 980 mm.
●Feature：
High visibility without sacrificing security
Welded at each intersection
Intrusion-repelling double vertical wire design
Small mesh openings for anti-cut and anti-climb
Corrosion-resistant
Finished after welding to protect weld points
Can be paired with a fence topper for added security
Easy installation
Low maintenance
●Application:
* Airport
* Prison
* Factories
* Border
* Power Plants
* Government infrastructure projects
* Commercial and industrial applications
* Telecom
* Railway
* Harbor
* Road
* School
