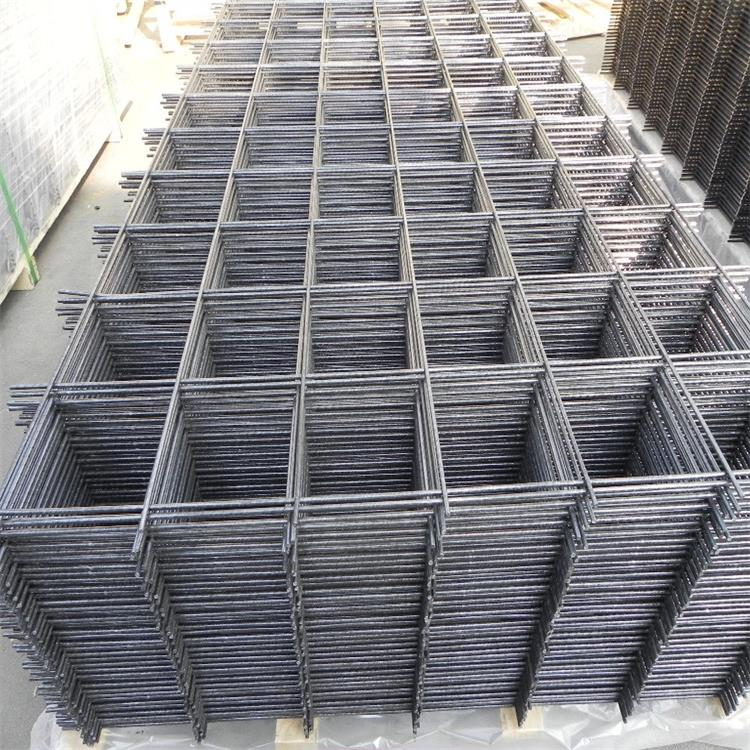

Galvanized Welded Wire Mesh Panel
Welded wire mesh panels made from galvanized wire or black iron steel wire, also can be PVC coated or Powder coating to shield them from corrosion and rust. welded wire mesh panels can be used for a wide range of applications usage like below: security cages, security fencing,metal fencing, dog fencing, animal enclosures, aviaries, bird cages, pet hutches, cat fences, pond covers or protection, garden fencing,construction materials.
Specification | ||
Opening | Wire Diameter | |
Inch | metric Unit(mm) | |
1"x1" | 25mmx25mm | 2.5mm,2.0mm,1.8mm,1.6mm |
2"x2" | 50mmx50mm | 2.5mm,2.0mm,1.8mm,1.6mm |
2"x3" | 50mmx70mm | 6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm |
2"x4" | 50mmx100mm | 6.0mm,5.0mm,4.0mm,3.0mm,2.0mm |
2"x6" | 50mmx150mm | 6.0mm,5.0mm,4.0mm,3.0mm |
2"x8" | 50mmx200mm | 6.0mm,5.0mm,4.0mm,3.0mm |
3"x3" | 75mmx75mm | 6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm,1.6mm |
3"x4" | 75mmx100mm | 6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm |
4"x4" | 100mmx100mm | 6.0mm,5.0mm,4.0mm,3.0mm |
5"x5" | 125mmx125mm | 6.0mm,5.0mm,4.0mm,3.0mm |
6"x6" | 150mmx150mm | 6.0mm,5.0mm,4.0mm,3.0mm |
Characteristics of Welded wire Mesh Panel:
Excellent durability - resistant to rust and corrosion
Smooth surface
Different gauges and mesh sizes are available.
Easy to install and store due to weight
Exceptional tenacity and flexibility
Welded wire mesh panel application:
Security fence panel
Animal enclosures and caging
Agriculture, gardening, and farm uses
Window gates or screens
Ornamental panels for the infill
Wall and slope retention using gabions
Industrial applications, such as filter systems
Construction us(strengthen the concrete structure
Galvanized Welded Wire Mesh Panel
Welded wire mesh panels made from galvanized wire or black iron steel wire, also can be PVC coated or Powder coating to shield them from corrosion and rust. welded wire mesh panels can be used for a wide range of applications usage like below: security cages, security fencing,metal fencing, dog fencing, animal enclosures, aviaries, bird cages, pet hutches, cat fences, pond covers or protection, garden fencing,construction materials.
Specification | ||
Opening | Wire Diameter | |
Inch | metric Unit(mm) | |
1"x1" | 25mmx25mm | 2.5mm,2.0mm,1.8mm,1.6mm |
2"x2" | 50mmx50mm | 2.5mm,2.0mm,1.8mm,1.6mm |
2"x3" | 50mmx70mm | 6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm |
2"x4" | 50mmx100mm | 6.0mm,5.0mm,4.0mm,3.0mm,2.0mm |
2"x6" | 50mmx150mm | 6.0mm,5.0mm,4.0mm,3.0mm |
2"x8" | 50mmx200mm | 6.0mm,5.0mm,4.0mm,3.0mm |
3"x3" | 75mmx75mm | 6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm,1.6mm |
3"x4" | 75mmx100mm | 6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm |
4"x4" | 100mmx100mm | 6.0mm,5.0mm,4.0mm,3.0mm |
5"x5" | 125mmx125mm | 6.0mm,5.0mm,4.0mm,3.0mm |
6"x6" | 150mmx150mm | 6.0mm,5.0mm,4.0mm,3.0mm |
Characteristics of Welded wire Mesh Panel:
Excellent durability - resistant to rust and corrosion
Smooth surface
Different gauges and mesh sizes are available.
Easy to install and store due to weight
Exceptional tenacity and flexibility
Welded wire mesh panel application:
Security fence panel
Animal enclosures and caging
Agriculture, gardening, and farm uses
Window gates or screens
Ornamental panels for the infill
Wall and slope retention using gabions
Industrial applications, such as filter systems
Construction us(strengthen the concrete structure
