✓ CE Certified✓ Factory Audited✓ Test Reports Available✓ OEM / ODM Accepted✓ Export to 20+ Countries
TJ-EPC
TuoJiang

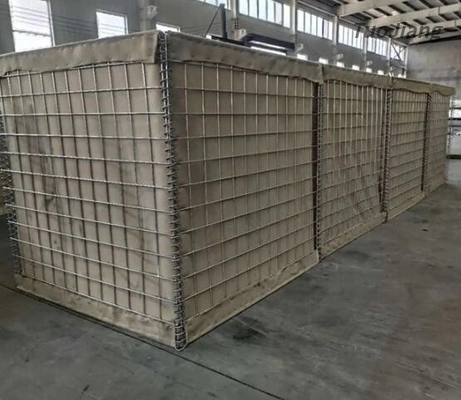

The TuoJiang EPC. explosion-proof protective cage is a military-grade welded gabion barrier system manufactured by Anping Tuojiang Metal Wire Mesh Products Co., Ltd.— a CE-certified, factory-audited manufacturer with 12+ years of production experience in Hengshui County, Hebei, China's leading wire mesh manufacturing region.
Designed for procurement teams, defense contractors, civil engineering project managers, and government agencies, this product offers transparent pricing, full compliance documentation, and a 10,000-set/month production capacity to support large-scale orders without delay.
Parameter | Value |
|---|---|
Model No. | TJ.EPC-05 |
Material | Galvanized Iron Wire / Galfan (Zn-5%) |
Wire Diameter | 3.0 – 5.0 mm |
Surface Treatment | Hot-Dip Galvanized |
Standard Size | 2m × 1m × 1m |
Mesh Aperture | 76.2×76.2 mm (custom available) |
Joint Method | Precision Welded |
Parameter | Value |
|---|---|
Geotextile | 250–400 g/m² (Sand/Brown/Gray/Green) |
Certification | CE |
Warranty | 5–10 Years |
MOQ | 50 Pieces |
Lead Time | 15–25 Working Days |
Packaging | Metal Pallet + Plastic Strip |
10 standard configurations available. All dimensions are customizable. Contact us with project drawings for OEM quotation within 24 hours.
Model | H (m) | W (m) | L (m) | Cells | Best Application |
|---|---|---|---|---|---|
TJ.EPC-01 | 1.37 | 1.06 | 10.0 | 9 | Medium barrier runs |
TJ.EPC-02 | 0.61 | 0.61 | 1.21 | 2 | Compact checkpoint barriers |
TJ.EPC-03 | 1.00 | 1.00 | 10.0 | 10 | Standard perimeter wall |
TJ.EPC-04 | 1.00 | 1.50 | 10.0 | 10 | Wide-base stability |
TJ.EPC-05 ★ HOT | 0.61 | 0.61 | 3.05 | 5 | General purpose — most ordered |
TJ.EPC-06 | 1.68 | 0.61 | 3.05 | 5 | Tall barrier, narrow footprint |
TJ.EPC-07 | 2.21 | 2.13 | 27.74 | 13 | Large-scale perimeter defense |
TJ.EPC-08 | 1.37 | 1.22 | 10.0 | 9 | Civil engineering retaining |
TJ.EPC-09 | 1.00 | 0.76 | 9.14 | 12 | Slope stabilization |
TJ.EPC-10 | 2.12 | 1.52 | 30.5 | 20 | Maximum-length blast wall |
All prices are FOB Hebei, China. CIF and DDP quotes (including freight and customs clearance) are available on request. Contact us for your destination port.
Order Quantity | Unit Price (FOB) | Saving vs. Min Order | Recommended For |
|---|---|---|---|
50 – 499 pcs | USD $30.00 / pc | — | Trial & pilot orders |
500 – 999 pcs | USD $25.50 / pc | Save 15% | Mid-scale installations |
1,000 – 2,999 pcs | USD $20.00 / pc | Save 33% | Large project procurement |
3,000+ pcs ⭐ BEST | USD $15.90 / pc | Save 37% | Government & wholesale |
Payment Terms: T/T — 30% deposit, balance before shipment. L/C at sight accepted for orders above $50,000 USD. Incoterms: FOB (default) / CIF / DDP available.
Military Perimeter Defense — forward operating base protection, camp perimeter barriers
Blast Containment Walls — munitions storage zones, IED-risk areas, training ranges
Road Checkpoints & Border Control — vehicle barriers, entry control points
Civil Engineering — retaining walls, slope stabilization, flood control embankments
Critical Infrastructure Protection — power plants, embassies, airports, government buildings
Emergency Deployment — rapid-response perimeter barriers for disaster relief operations
Q: Can you provide formal quotations and compliance documents for procurement approval?
Yes. We issue formal Proforma Invoices, CE certificates, technical datasheets, and tensile strength test reports — all in English and tailored to your procurement authority's requirements.
Q: What is the production lead time and how is shipment tracked?
15–25 working days from deposit confirmation. We provide real-time production updates and full shipping documents (B/L, packing list, invoice, CO, CE certificate) within 3 days of vessel departure, with tracking throughout transit.
Q: What is your defect rate and quality dispute process?
Our maintained defect rate is below 0.1%. Every weld is tensile-tested during production. Quality disputes submitted with documentation within 7 days of receipt are resolved within 2 working days — replacement shipment or full credit note.
Q: Can you manufacture to our government-issued drawings or custom specifications?
Yes — full OEM/ODM service. Customizable: dimensions (H×W×L), mesh aperture, wire diameter, geotextile weight and color, branding. Provide specs and receive feasibility + pricing within 24 hours.
Q: Are samples available before bulk order commitment?
Yes. Stock samples available for qualified buyers. Customer covers DHL/FedEx courier cost. Full sample value credited against first production order. Delivery 5–7 business days after arrangement.
