Chain link fences are some of the most affordable and popular fence styles. These fences provide security and privacy, blend well with landscapes, and control access to a property. Chain link fence is also named diamond wire mesh with the diamond opening. It is made with various metal wires weaving by chain link fence machine. Our chain link fence materials are available in stainless steel, galvanized, and PVC coated wire. They are normally used in gardens, sports yard, industrial sites, houses, roads and events for crowd control. Chain link fences are some of the most affordable and popular fence styles. These fences provide security and privacy, blend well with landscapes, and control access to a property.
Opening Size | Wire Gauge | Width Per Roll | |||
Inch | mm | BWG | mm | Feet | Meter |
3/8" | 10 | BWG 27-23 | 0.41-0.64 | 1'-6' | 0.1-2m |
1/2" | 13 | BWG 27-22 | 0.41-0.71 | 1'-6' | 0.1-2m |
5/8" | 16 | BWG 27-22 | 0.41-0.71 | 1'-6' | 0.1-2m |
3/4" | 20 | BWG 25-19 | 0.51-1.06 | 1'-6' | 0.1-2m |
1" | 25 | BWG 25-18 | 0.51-1.24 | 1'-6' | 0.1-2m |
1 1/4'' | 32 | BWG 24-18 | 0.51-1.24 | 1'-6' | 0.2-2m |
1 1/2" | 40 | BWG 23-16 | 0.64-1.65 | 1'-6' | 0.2-2m |
2" | 50 | BWG 22-14 | 0.71-2.11 | 1'-6' | 0.2-2m |
2 1/2" | 65 | BWG 22-14 | 0.71-2.11 | 1'-6' | 0.2-2m |
3" | 75 | BWG 21-14 | 0.81-2.11 | 1'-6' | 0.3-2m |
4" | 100 | BWG 20-12 | 0.89-2.80 | 1'-6' | 0.5-2m |
Metal galvanized hexagonal wire diameters: 0.3mm to 2.0mm, PVC coated metal wire mesh diameter: 0.8mm to 2.6mm. Twisted into a hexagonal shape, the lines on the outer frame edge can be made into single sided, double sided, and movable edge threads. Weaving method: normal twisting, reverse twisting, bidirectional twisting, first weaving followed by plating, first plating followed by weaving, and also divided into hot dip galvanizing, electro galvanizing, PVC coating, etc. Characteristic: sturdy structure, flat surface, with good anti-corrosion, antioxidant and other characteristic.

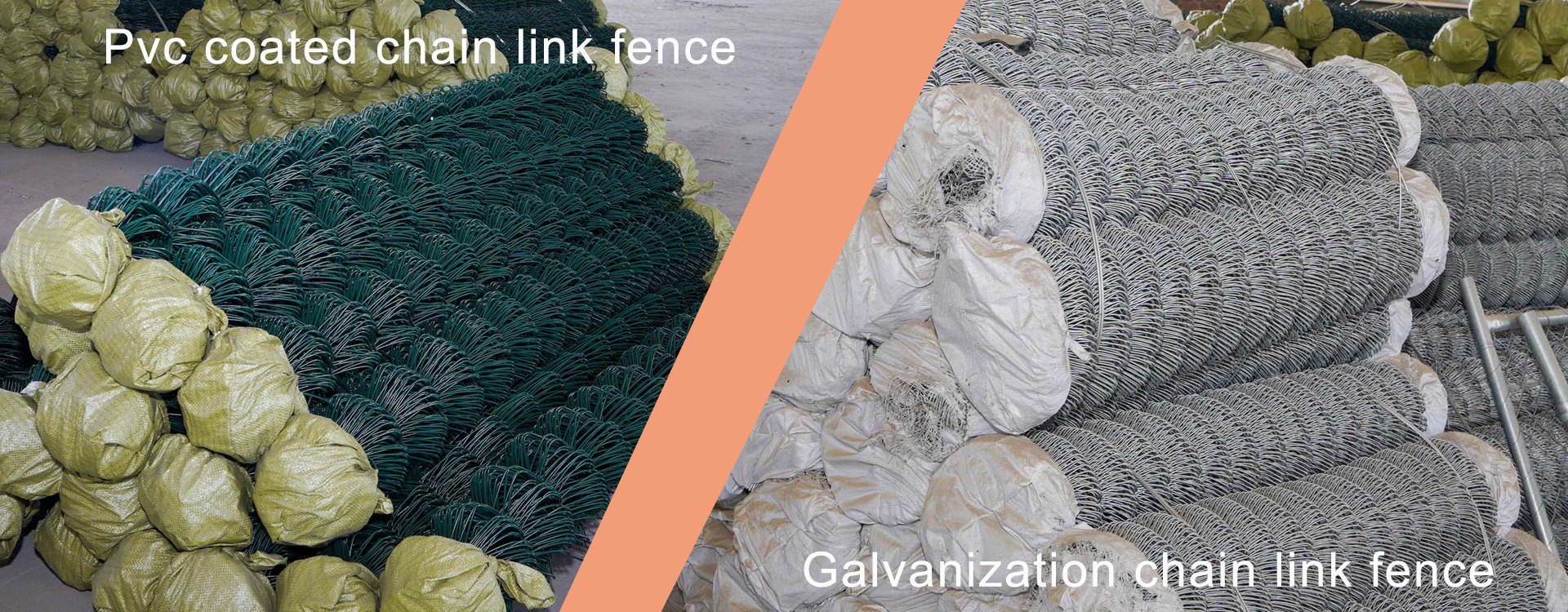

Surface types

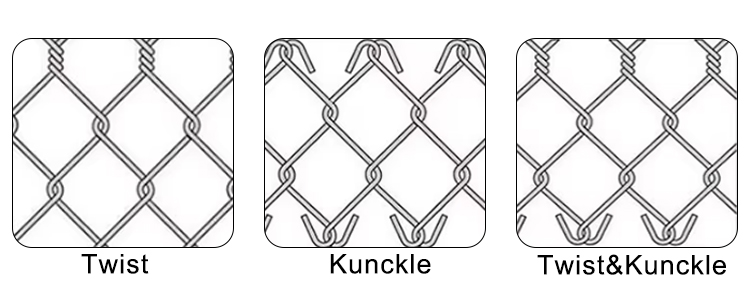

Weave type
Product application

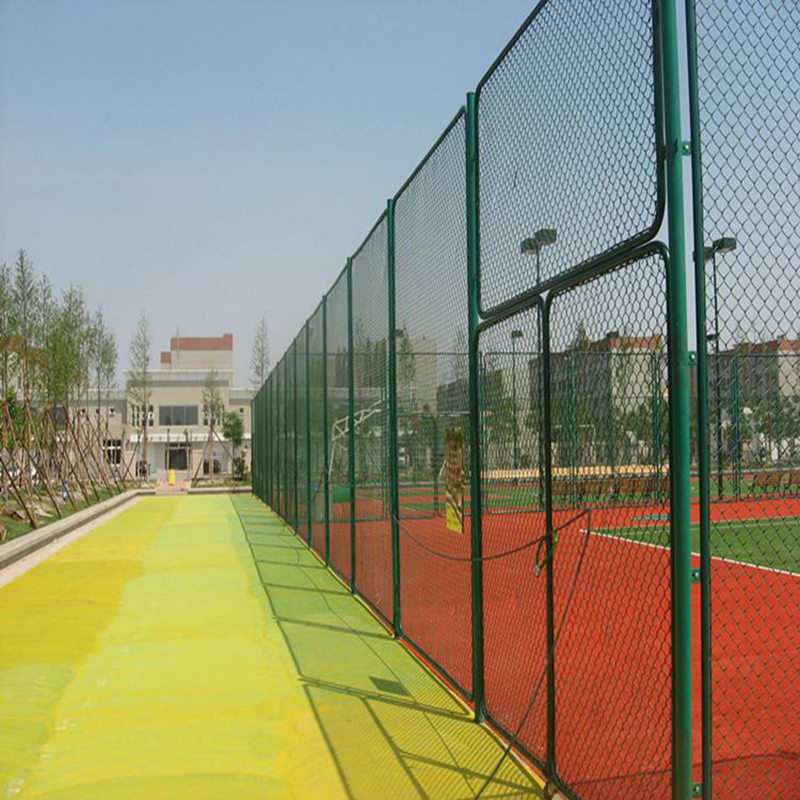

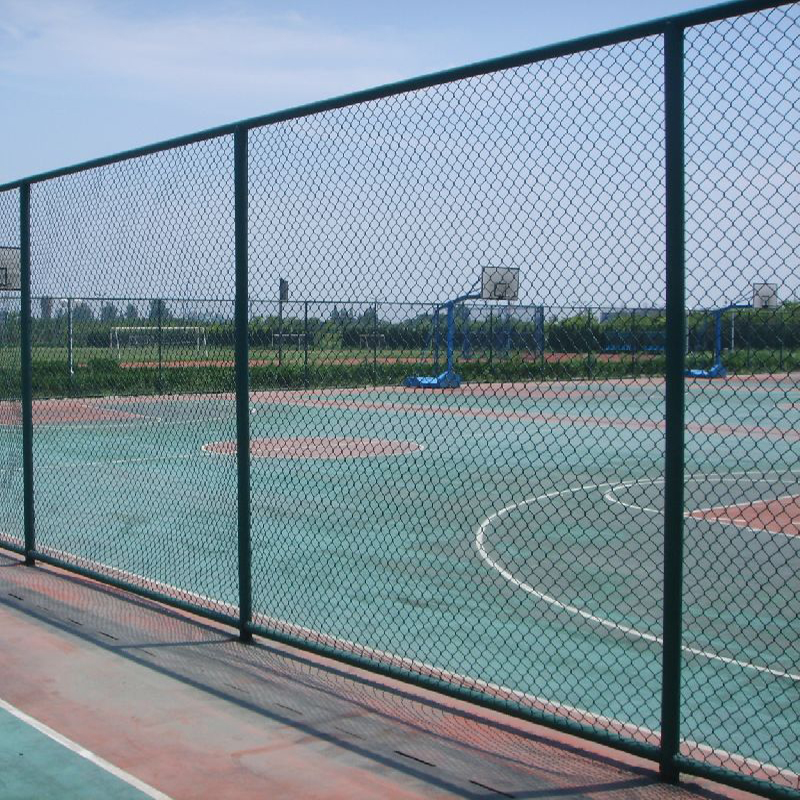

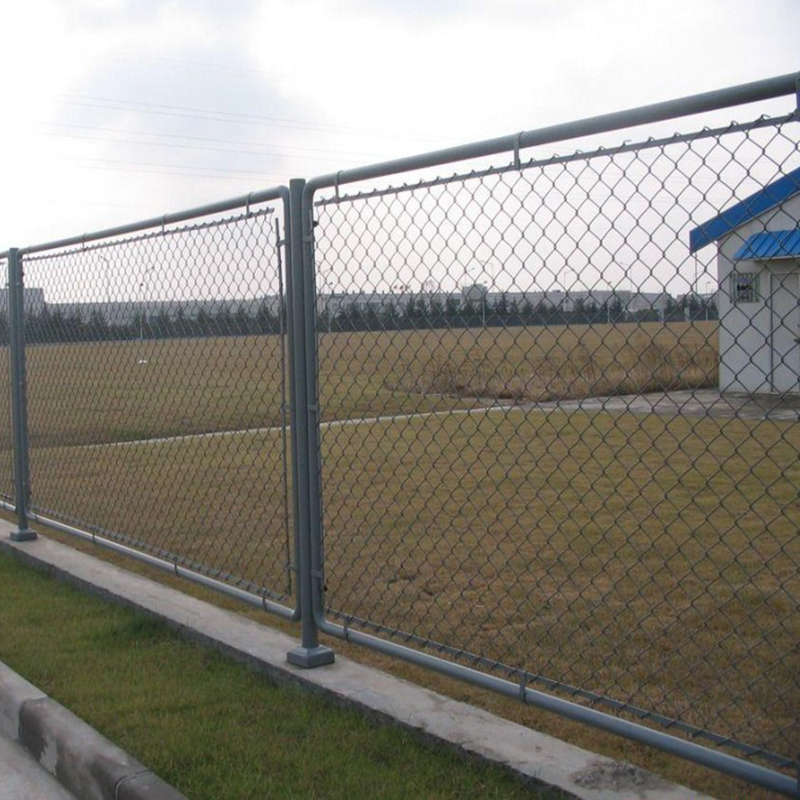

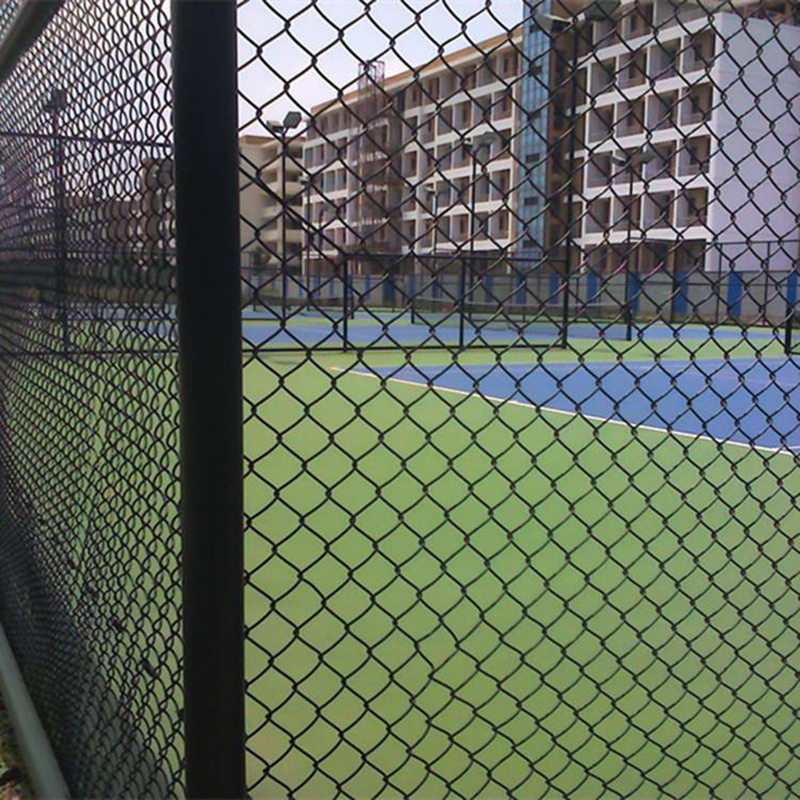

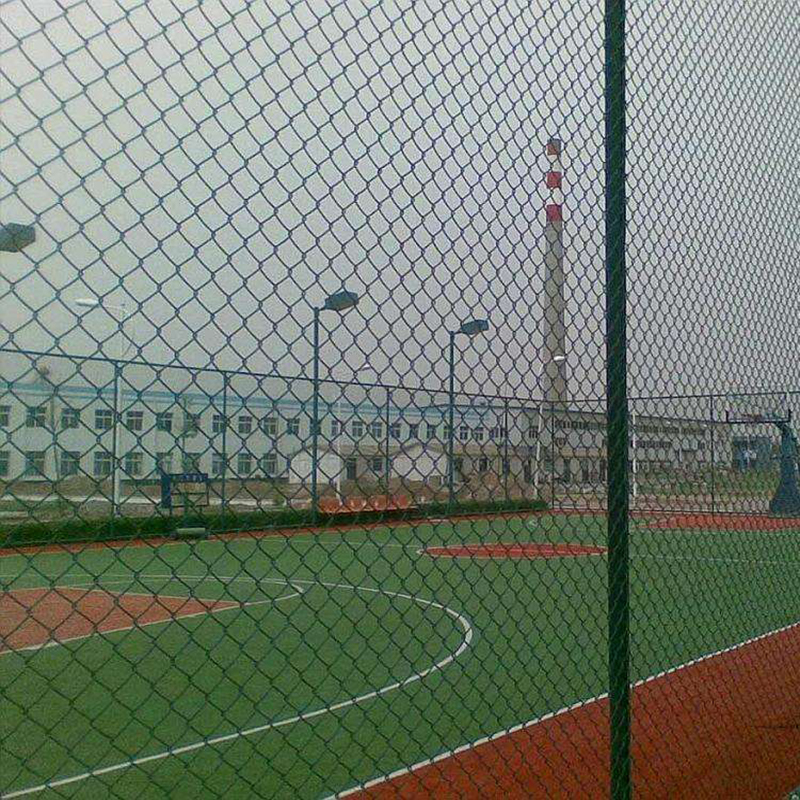

In terms of application fields, chain link fence is almost ubiquitous. In the field of agriculture, it can be used to enclose farms, pastures, etc., to prevent livestock from escaping and wild animals from invading, and protect the safety of agricultural production. In the field of industry, it is often used as a safety isolation net for factories, warehouses, construction sites, etc., to separate production areas, storage areas and pedestrian areas, and avoid safety accidents. In the field of transportation, it can be installed on both sides of highways, railways and bridges to prevent pedestrians and animals from entering the road and ensure the smooth flow of traffic. In addition, it is also widely used in sports venues, such as football fields, basketball courts, tennis courts, etc., to enclose the venue and ensure the order of the game.
Chain link fences are some of the most affordable and popular fence styles. These fences provide security and privacy, blend well with landscapes, and control access to a property. Chain link fence is also named diamond wire mesh with the diamond opening. It is made with various metal wires weaving by chain link fence machine. Our chain link fence materials are available in stainless steel, galvanized, and PVC coated wire. They are normally used in gardens, sports yard, industrial sites, houses, roads and events for crowd control. Chain link fences are some of the most affordable and popular fence styles. These fences provide security and privacy, blend well with landscapes, and control access to a property.
Opening Size | Wire Gauge | Width Per Roll | |||
Inch | mm | BWG | mm | Feet | Meter |
3/8" | 10 | BWG 27-23 | 0.41-0.64 | 1'-6' | 0.1-2m |
1/2" | 13 | BWG 27-22 | 0.41-0.71 | 1'-6' | 0.1-2m |
5/8" | 16 | BWG 27-22 | 0.41-0.71 | 1'-6' | 0.1-2m |
3/4" | 20 | BWG 25-19 | 0.51-1.06 | 1'-6' | 0.1-2m |
1" | 25 | BWG 25-18 | 0.51-1.24 | 1'-6' | 0.1-2m |
1 1/4'' | 32 | BWG 24-18 | 0.51-1.24 | 1'-6' | 0.2-2m |
1 1/2" | 40 | BWG 23-16 | 0.64-1.65 | 1'-6' | 0.2-2m |
2" | 50 | BWG 22-14 | 0.71-2.11 | 1'-6' | 0.2-2m |
2 1/2" | 65 | BWG 22-14 | 0.71-2.11 | 1'-6' | 0.2-2m |
3" | 75 | BWG 21-14 | 0.81-2.11 | 1'-6' | 0.3-2m |
4" | 100 | BWG 20-12 | 0.89-2.80 | 1'-6' | 0.5-2m |
Metal galvanized hexagonal wire diameters: 0.3mm to 2.0mm, PVC coated metal wire mesh diameter: 0.8mm to 2.6mm. Twisted into a hexagonal shape, the lines on the outer frame edge can be made into single sided, double sided, and movable edge threads. Weaving method: normal twisting, reverse twisting, bidirectional twisting, first weaving followed by plating, first plating followed by weaving, and also divided into hot dip galvanizing, electro galvanizing, PVC coating, etc. Characteristic: sturdy structure, flat surface, with good anti-corrosion, antioxidant and other characteristic.
Surface types
Weave type
Product application
In terms of application fields, chain link fence is almost ubiquitous. In the field of agriculture, it can be used to enclose farms, pastures, etc., to prevent livestock from escaping and wild animals from invading, and protect the safety of agricultural production. In the field of industry, it is often used as a safety isolation net for factories, warehouses, construction sites, etc., to separate production areas, storage areas and pedestrian areas, and avoid safety accidents. In the field of transportation, it can be installed on both sides of highways, railways and bridges to prevent pedestrians and animals from entering the road and ensure the smooth flow of traffic. In addition, it is also widely used in sports venues, such as football fields, basketball courts, tennis courts, etc., to enclose the venue and ensure the order of the game.
